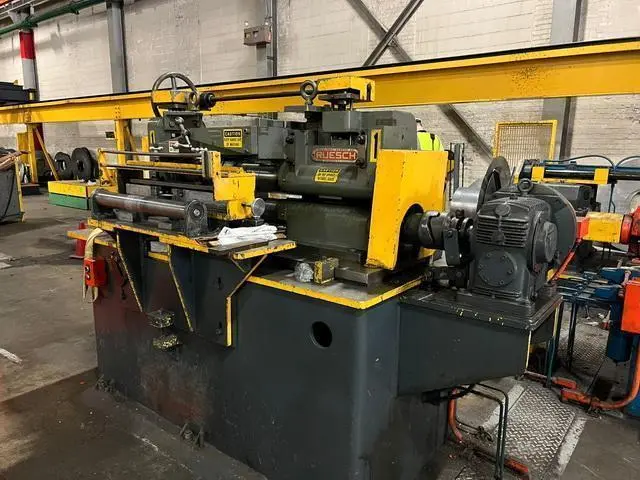

24" x .090" x 5000# Ruesch Slitting Line Stock # 14150

24" x .090" x 5000# Ruesch Slitting Line

Stock Number: 14150

General Specifications:
Max Coil Weight: 5000#
Max Coil Thickness: .090”
Entry Coil ID: 16”-20”
Entry Max Coil OD: 50”
Exit Coil ID: 20”
Exit Max Coil OD: 60”

Complete with the Following Components:

Uncoiler
31” Mandrel Face
Bolted Leaves for Larger ID
Hydraulic Expansion
Sliding Base
Feed Up Drive
Wichita Water Cooled Brake

Pass Line Roll

Edge Guides and Tension Stand

Ruesch Ring Type Slitter Head (Option for Additional Head with Same Specs)
s/n: N2117A, 5436

27” Arbor Face
Arbor Diameter: 4”
Parallel Adjustment
3HP AC Motor

Exit Pass Line Roll

Scrap Winder

Recoiler
Hydraulic Push Off Plate
30” Mandrel Face
20” ID
Max Coil OD: 60”
Separator Rings
25HP Motor
Horsburgh & Scott Gear Box
Eaton Dynamic Electromagnetic Friction Brake

Exit Two Arm Turnstile
35” Arm Length
Manual Rotation

Price for Additional Slitter Head is $15,000

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
