Used Delta Cut-To-Length Line, Model 72" x 1/2" x 80,000 lbs. Complete with a coil loading car, double cone uncoiler, and sliding base. Manufactured in 2003, this machine offers a breadth of capabilities such as a max sheet length of 40', coil weight capacity of 80,000#, and a thickness range of .048” - .530”. Special features include a water cooled brake & cooler, Delta Corrective 4 HI Plate Leveler with 11 work rolls, and a 400 HP DC Drive motor. Not to mention, Alcos attachments from 2004 including a mechanical shear and 40’ stacker. Invest in this feature-packed, high-capacity machine!
72" x 1/2" x 80,000# Delta / Alcos Cut-To-Length Line Year 2003
Type: Cut To Length Lines
Stock Number: 14140
Year 2003
Thickness Range: .048” - .530”
Coil Weight Capacit: 80,000#
Max Sheet Length: 40’
Min Sheet Length 48”
Coil Width Range: 36” – 72”
Yield Strength: 50,000 PSI
Complete Line with:
Coil loading Car (2003)
Double Cone Uncoiler (2003)
Sliding Base
Feed Up Drive
Water Cooled Brake & Cooler
Peeler Hold Down Roll (2003)

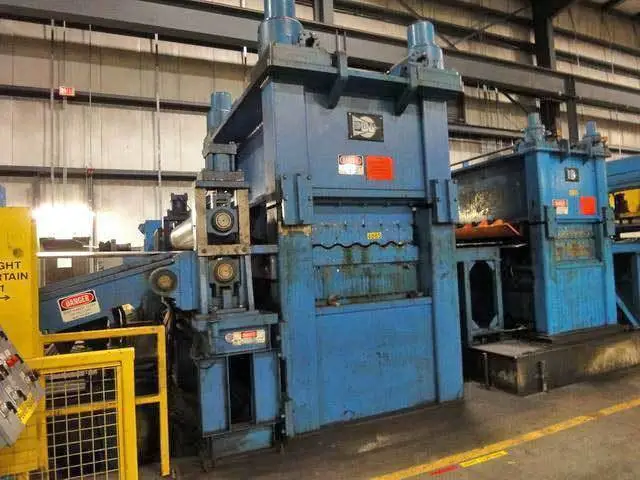

Delta Corrective 4 HI Plate Leveler (2003)
12.9” Diameter Entry Pinch Rolls
84” Pinch Roll Face
11 Work Rolls
5.375” Diameter Work Rolls
84” Work Roll Face
7 Flights of Top & Bottom Back-Ups
9.842” Diameter Back-Ups Rolls
Individual Motorized Adjustments
Motorized Tilt & Raise
400 HP DC Drive, 1750 RPM Motor & Controls
Oil Bath Lubricated Helical Distribution and Reduction Gear Boxes
Delta Corrective 4 HI Leveler (2003)
19 Work Rolls
2.5” Diameter Work Rolls
84” Work Roll Face
7 Flights Individual Motorized Back-Up Rolls
4.250” Diameter Back-Up Rolls
Motorized Tilt & Riase
200 HP DC Drive, 1750 RPM Motor & Controls
Oil Bath Lubricated Helical Distribution and Reduction Gear Boxes
Staggered Universal Joint Drive
Alcos Mechanical Shear (2004)
Motorized Gap Adjustment
75 HP AC Drive
Flywheel with Air Clutch & Brake
Alcos 40’ Stacker (2004)
Lift Tables
Drop Type Design
Motorized End Stop
Side Squaring
Powered Exit Conveyor
Touch Screen Digital Panel
Operator Push Button Stations
Digital Readouts
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICAITONS ARE SUBJECT TO BUYERS VERIFICATION**
