24" 12 HIGH REVERSING WATERBURY FARREL SENDZIMIR ROLLING MILL (Stock# 14136)

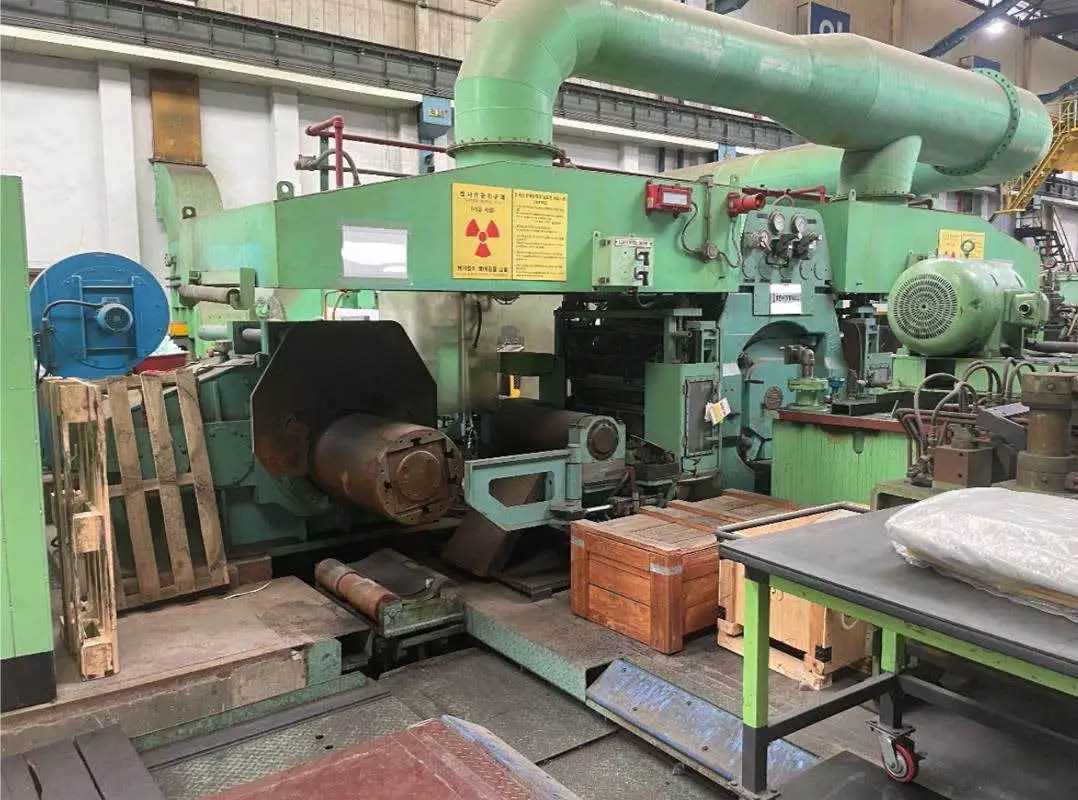

24" 12 HIGH REVERSING WATERBURY FARREL SENDZIMIR ROLLING MILL
Stock # 14136

Current Use for: Copper, Cu-Alloy [ Brass, Bronze, Cu-Ni] Material

Brand & Year: 1978, WATERBURY FARREL, USA
Upgrade for Equipment: 2009, Newly manufactured as below
Tension Reel 2set,
Coil car 2set,
AGC[ Pauri, Germany] Gage with Base 2set,
Z wiper with Base 2set,
Fume exhaust system,
Coolant system included Super-mic Filter system,
Hydraulic system
Co2 Fire Extinguisher system,
All Electric controller

Incoming Strip Thickness: Max 1,53mm
Width: Max 660mm – Min 300mm
Coil ID: 508Ømm
Coil OD: Max 1,350Ømm
Coil weight: Max 6,500kg

Finished Strip thickness: Min 0,051mm
Width: Max 660mm – Min 300mm
Coil ID: 508Ømm
Coil OD: Max 1,350Ømm
Coil weight: Max 6,500kg
Rolling speed: Max 280m/min
Rolling direction: First pass-Left to Right
Strip Tension: Max 5,000kg to 280m/min speed
Roller:
work roller: 1,812inch [ 46Ømm ]
Intermediate roller: 4,125inch [ 105Ømm ]
Backup roller: 8,858inch [ 225Ømm ]

Drive motor:
Mill: DC500Hp 575/950RPM [1] motor
Tension Reel: DC 230kw 450/1200RPM [2] motor

AGC System:
Gage: Y–Ray gage
Coolant system: Mineral Oil
Flow rate: 250GPM to Spray 946 LPM
Clean oil: 6,825L/Tank
Dirty oil: 6,518L/Tank

Fume Exhaust: 31,860M3/Hr

Utility source: Electric 440volt x 3Phase x 60Hz
Control: 220volt x 1 Phase x 60Hz, DC24Volts

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
