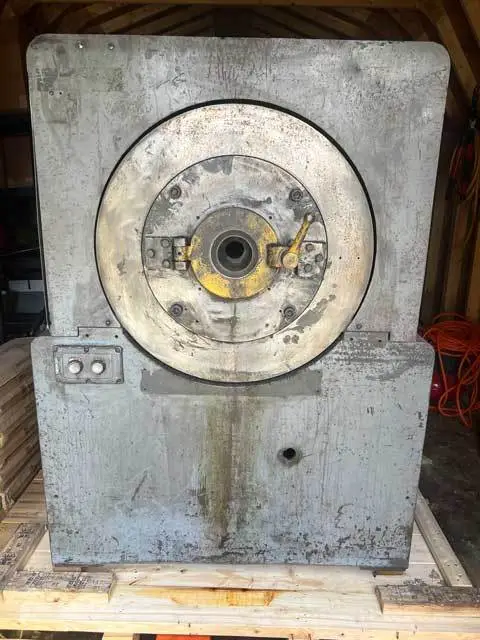

2-1/4" (57mm) TORRINGTON MODEL 433 2 DIE ROTARY SWAGER, Stock #14125

2-1/4" (57mm) TORRINGTON MODEL 433 2 DIE ROTARY SWAGER (14125)

STOCK # 14125

Manufacturer: Torrington Manufacturing
Model No.: 433
Type: Rotary Swager
Number of Dies: 2
Capacity tubing: 2 1/4" (57.15mm)
Capacity solids: 5/8" (15.875mm)
Longest possible taper in one operation: 2 7/8" (73.025mm)
Die size: 2.687" W (68.25mm) x 1.920" H (48.768mm) x 3" Long (76.2mm)
Backer size: 2.687" W (68.25mm) x 1.750" H (44.45mm) x 3" Long (76.2mm)
Rolls: 12
Roll size: 2" (50.8mm) Dia. x 3 3/8" (85.725mm) Long
Diameter hole through spindle: 2" (50.8mm)
Motor: 5 HP
Approx. size: 57" (1447.8mm) H x 43" (1092.2mm) W x 42" (1066.8mm) Length

NOTE: CATALOGUE SPECIFICATIONS

**Temporary Specifications Subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
