18" (457mm) x .250" (6mm) 4-HI Frohling Reversing Cold Rolling Mill (14086)

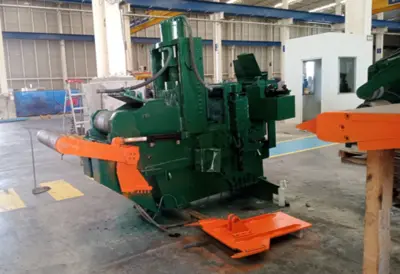

8" X 24.5" X 20" Frohling 4 High Reversing Rolling Mill
Stock# 14086

Manufacturer: Frohling (Germany)
Mechanically and Electrically Upgraded in 2012 (Approximately $3.5MM USD)

Max Rolling Thickness: .250"
Min Rolling Thickness: .010"
Work Roll Face: 20"
Max Strip Width 18"
Min Strip Width: 6"
Max OD: 60"
Coil ID: 20"
Max Rolling Force: 400 Ton
Max Rolling Speed: 1000fpm
Line Direction: Right to Left

Work Roll Diameter: 8"
Back-Up Roll Diameter: 24.5"

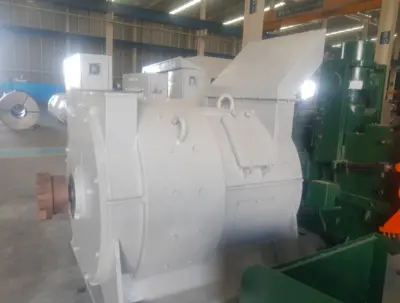

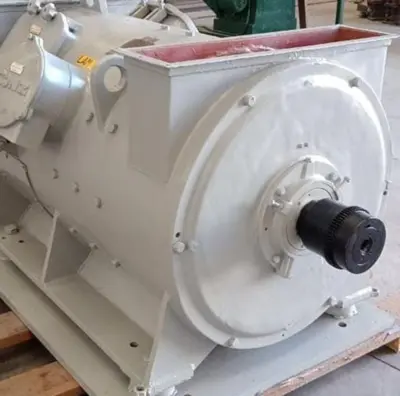

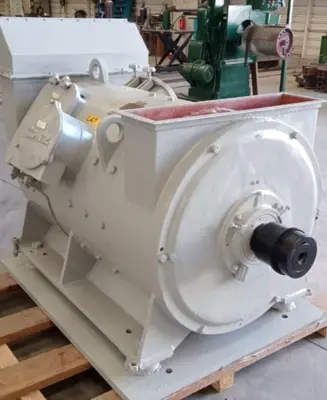

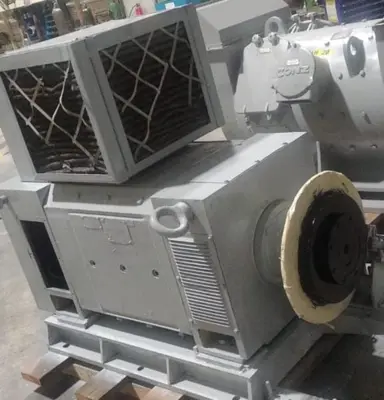

Main Motor: 958HP
(2) Uncoiler Motors: 218HP Siemens DC
(2) Recoiler Motors: 210.5HP Siemens DC

Maximum Coil Weight: 5 Ton

Spare Rolls and Chucks:

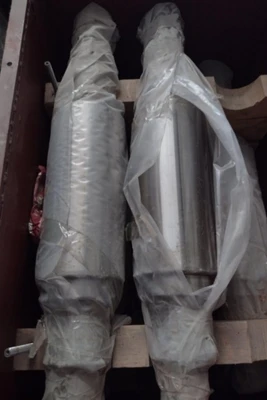

17 Brand New Work Rolls
10 Brand New Back Up Rolls
15 USED Work Rolls
2 USED Back Up Rolls
21 Work Roll Chucks

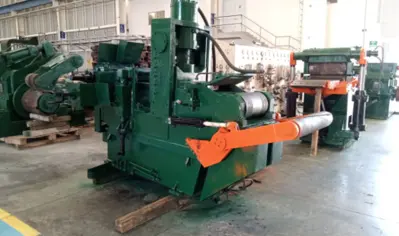

Complete Line with:
(2) Coil Cars
Pay off

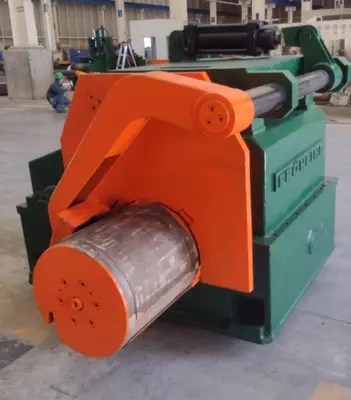

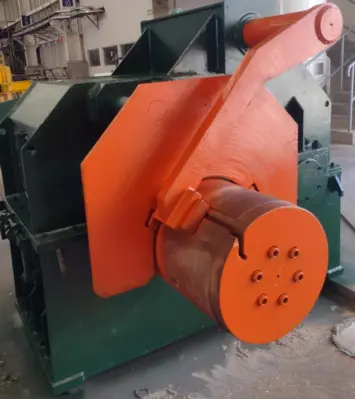

Uncoiler

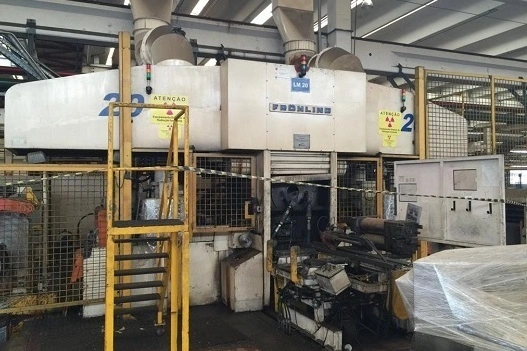

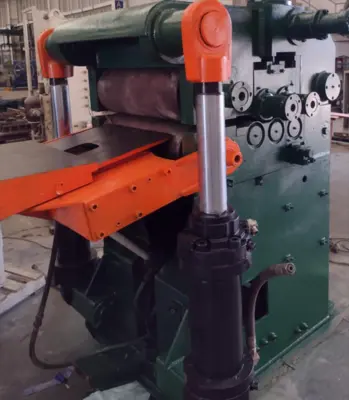

4-HI Rolling Mill with AGC

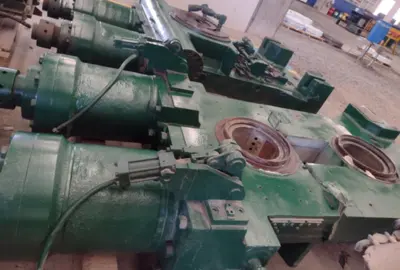

Hydraulic Screw Downs
Recoiler
Exit Coil Car

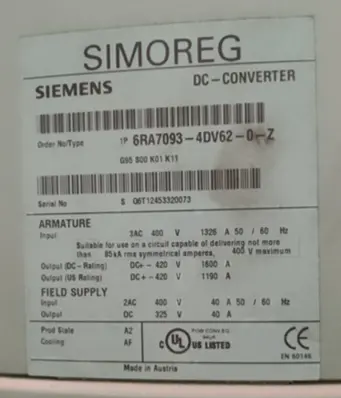

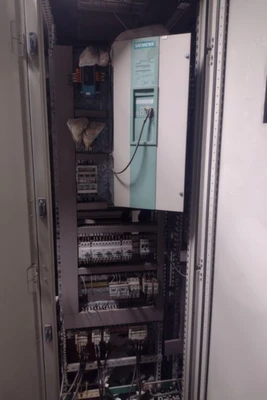

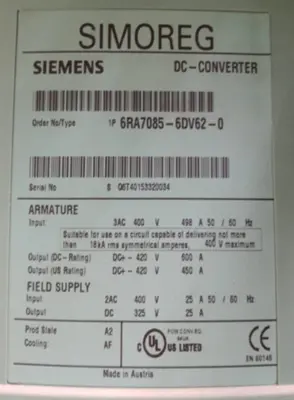

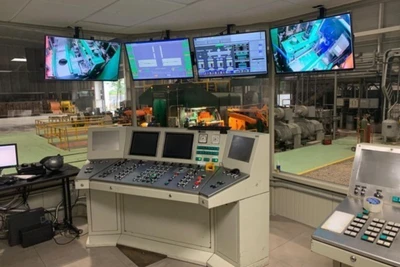

Siemens PLC and Drives
Controls, Electrics, Hydraulic Systems etc.

**PLEAE NOTE MILL IS DISMANTLED AND PLACED INTO STORAGE**
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
