24" (610mm) X 4-1/2" (115mm) SECO Sitting Line (14080)
24" (610mm) X 4-1/2"(115mm) SECO Slitting Line (14080)
Manufacturer: SECO Machinery Co. (USA)
Arbor Size:
--Diameter: 4.5" (115mm)
--Width: 24" (610mm)
Coil Size:
--I.D.: 16"(406mm) or 20"(508mm)
--O.D.: 72"(1828mm)
Coil Weight: 10,000 LBS (4536 KGS)
Previous Use: Stainless and Aluminum. Can do Carbon Steel.
Thickness Range as used: .019"(0.48mm)-.095"(2.4mm)
--Can slit thinner material with purchase of shimless tooling

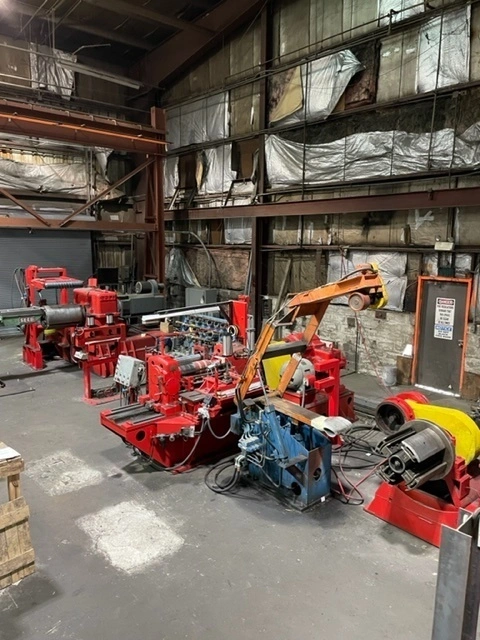

Line is installed and operational and consists of:
Payoff with hydraulic snubber arm
Slitter Head (Driven)
Recoiler (Driven)
--Hydraulic Coil Pushoff
--Overarm Separator
--Two Arm Turnstyle
Coil Banding Station
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
