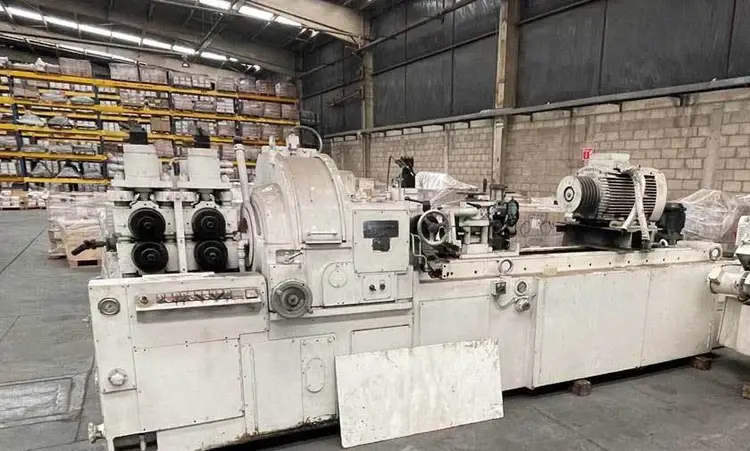

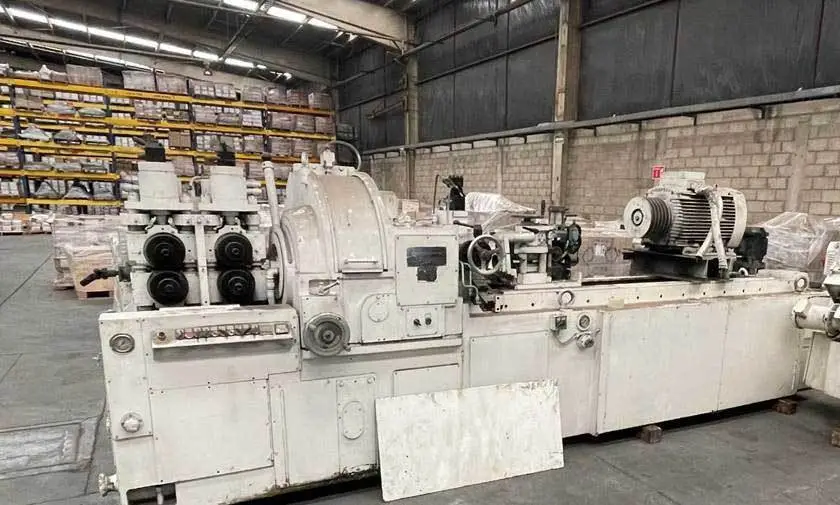

6 - 21mm KIESERLING MODEL WDH 20 BAR PEELING MACHINE (14078)
Have one to sell?
ConditionUsed
1 available
Upgrade your operations with our used KIESERLING MODEL WDH 20 BAR PEELING MACHINE! Manufactured in 2002, this machine features adjustable shaving head and advance, high-powered motors, and a control system by SIEMENS 115U. It comes complete with feeding table, hydraulic system, and all necessary manuals. Ideal for operations requiring a capacity of 6-21mm diameter bar. An excellent addition to any bar turning/peeling line.
6 - 21mm KIESERLING WDH 20 BAR PEELING MACHINE (14078)
Stock #14078
Manufacturer: Kieserling & Albrecht, Germany
Model: WDH 20
Capacity: 6 (0.25") - 21mm (0.827") Diameter Bar
Shaving Head: Infinitely Adjustable Shaving Head 1000 - 6000 rpm
Stepless adjustable Advance: 1 - 30 m/min
Output of the three-phase motor for driving the hollow shaft, with coupling of a PIV variator, type RS 44, approx: 45kW/1800 rpm
Power of the three-phase motor for the chipbreaker: 1,3 kW/1800rpm
Three-phase motor power for feed and clamping carriage: 12 kW/1800rpm
Tool Holder Reach:
1st: 6 - 9 mm
2nd: 9 - 13 mm
3rd: 13 - 17 mm
4th: 17 - 21 mm
Bar peeler Model WDH 20 (Used with minimum use)
Includes:
1. Feeding table for 7.4 m bar lenght
2. Hidraulic system (Almost new)
3. Electric equipment with all the motors and and the corresponding PIV variators
4. Control cabinet complete with SIEMENS 115U automaton
5. Evacuation bench for bars up to 7.4 m long
6. All the manuals and diagrams
Equipment data:
Average weight: 11,500 kg
Voltage: 440 VAC
Phase: 3
Control: SIEMENS 115U
Model No.: R6A L3005
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
