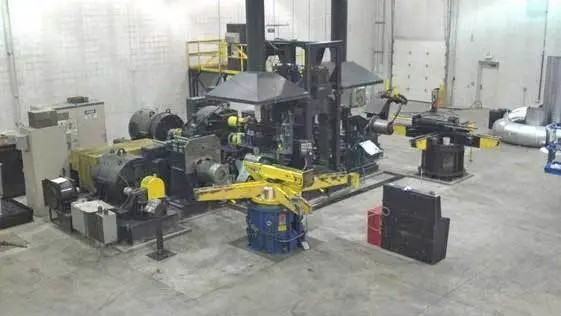

20" x 22" BLISS 2 HIGH COLD ROLLING MILL (14077)

20" X 22" Bliss 2 High Cold Rolling Mill
Stock # 14077

Mill Specifications:

20" Bliss 2Hi Cold Rolling Mill
modified in 2013 to roll Aluminum Strip
INCLUDES:

Uncoiler and Recoiler
6 sets of rolls
2 sets of chocks
Mill wipe
Sprayer System
Exhaust System includes spray collectors, mill hoods, ducting, stack and blower
Filter skid
High Flow Filter Housings
Keller Tramp Oil Removal System
Immersion Heaters
ACG System Fire Suppression System
Updated Coolant System

UNIT IS CURRENTLY OPERATIONAL AND UNDER POWER.

ADDITIONAL INFORMATION /SPECIFICATIONS:
MANUFACTURER – BLISS
CONFIGURATION – 2HI
TYPE – NON REVERSING
WIDTH RANGE – 4” – 20”
THICKNESS RANGE – 0.008” - .250” ALUMINUM / 0.019” - .200” STEEL
ROLL DIMENSIONS– 20” DIAMETER X 22” FACE
COIL ID/OD – 20” ID ENTRY/EXIT, 60” OD ENTRY/80” OD EXIT
LINE SPEED – 900 FPM
MAIN MILL MOTOR – 450 HP DC , 600/1200 RPM, 250 VO, 1238 AMP W/ SCR DRIVES
PAYOFF – 35 Kw DC, 400/1200 RPM DRAG GENERATOR W/ SCR DRIVES
RECOILER – 150 HP DC, 400/1200 RPM W/ SCR DRIVES
ELECTRICS – SIEMENS SERIES 5 & SERIES 7 (NEW 2001)
HYDRAULIC SCREWS – YES
AGC SYSTEM – YES, SOUTHEAST ASIA CONTROL & AUTOMATION (New in 2016)
MILL CONTROLS – SOUTHEAST ASIA CONTROL & AUTOMATION (New in 2016)
FILTRATION SOLUTION - OIL
GAUGES – (2) DMC-450 GAUGES (NEW 1981)
WORK ROLLS – 6 SETS
CHOCKS – 2 SETS
ROLLER BEARINGS – YES
LINE DIRECTION – RIGHT TO LEFT
STATUS – MILL IS CURRENTLY INSTALLED & OPERATING

CONFIGURATION:

ENTRY 4 ARM TURNSTILE
MANDREL UNCOILER WITH COIL HOLD DOWN ROLL
ENTRY PINCH ROLL ASSEMBLY
ENTRY DMC THICKNESS GAUGE
BILLY ROLL
2HI BLISS MILL
EXIT DMC THICKNESS GAUGE
EXIT BILLY ROLL
MANDREL RECOILER WITH PUSHER PLATE
EXIT 4 ARM TURNSTILE
MILL HYDRAULICS, ELECTRICS, OPERATORS DESK
MILL EXHAUST SYSTEM
FILTER SKID
KELLER TRAMP OIL REMOVAL SYSTEM (New 2013)
UPDATED COOLANT SYSTEM (New 2013)
FIRE SUPPRESSION SYSTEM (New 2013)

**Temporary Specifications Subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
