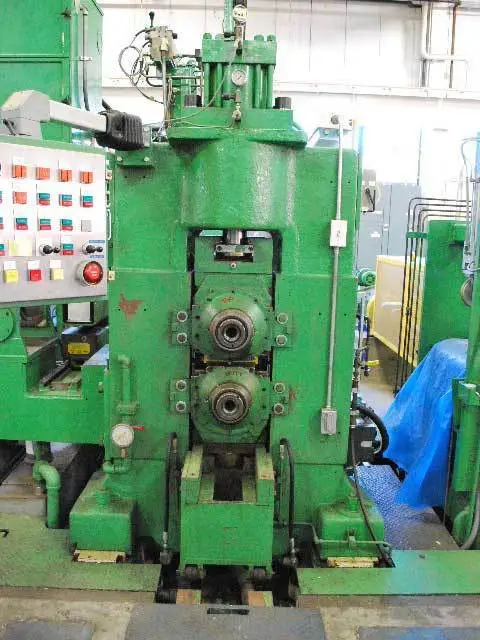

14" (355mm) x 16" (406mm) RWF 2 HIGH SKIN PASS MILL (14020)

14" (355mm) x 16" (406mm) RWF 2 HIGH SKIN PASS/ TEMPER MILL (14020)

MACHINE # 14020

MANUFACTURER:..................RWF (GERMANY)
UPGRADED BY:...................I2S (USA)
-NEW HYDRAULIC SCREWDOWNS
-NEW X-RAY THICKNESS GAUGES

ROLL SIZE:.....................14" (350mm) DIAMETER X 16" (400mm) WIDTH
ROLLER BEARINGS

NON-REVERSING
RIGHT TO LEFT DIRECTION

MILL STAND CROSS SECTION:..... 8" (203.2mm) X 13.5" (342.9mm)
MILL STAND WINDOW:............ 15.250" (387.35mm) WIDE X 35" (889mm) HIGH
SPINDLES & COUPLINGS:......... UNIVERSAL
PINION STAND REDUCER:......... COMBINATION, MODEL JW64, SERIAL NUMBER 101605
0-500-1750 RPM, RATION 9,71 TO 1
MILL DRIVE MOTOR:............. 440 VOLTS, 208 AMPS, 500 - 1750 RPM, 80 KW
(107 HP)
RECOILER MOTOR:............... 440 VOLTS, 97 AMPS, 450 - 1650 RPM, 35 KW
(50 HP)

SCREW DOWNS:.................. HYDRAULIC
ENTRY TENSION STAND

PAYOFF
-DRIVEN
-HYDRAULIC MANDREL EXPANSION
-EQUIPPED WITH COIL CAR
-PAPER UNWINDER

RECOILER
-DRIVEN
-HYDRAULIC MANDREL EXPANSION
-HYDRAULIC SNUBBER COIL HOLDDOWN
-EQUIPPED WITH COIL CAR
-PAPER WINDER

MILL WAS RUNNING AS A SINGLE SPINDLE SKIN PASS MILL BUT HAS THE SECOND SPINDLE
AND CAN RUN AS A STANDARD 2 HI ROLLING MILL

***Temporary Specifications Subject To Revisions**

**PRICE QUOTED IS AS IS WHERE IS SUBJECT TO PRIOR SALE***

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
