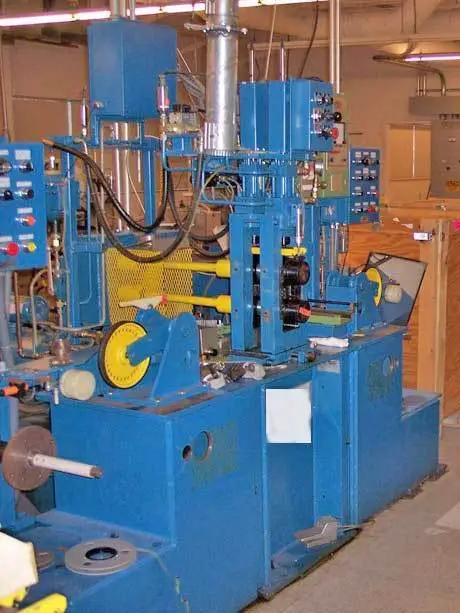

13/16"(20.7mm) x 4"(101mm) x 2"(50mm) BHS-TORIN 2/4 HI, HYD SCREWDOWN (13989)

(Used) 13/16" (20.7mm) x 4"(101mm) x 2" (50.8mm) BHS-TORIN 2/4 HI
Rolling Mill

MACHINE #13989

SPECIFICATIONS

MANUFACTURER: BHS-TORIN (U.S.A.)

TYPE: 13/16" (20.7mm) x 4" (101mm) x 2" (50mm) 2 HI/4HI REVERSING ROLLING
MILL WITH A CLOSED LOOP AGC SYSTEM, HYDRAULIC SCREWDOWNS AND TRAVERSING
WINDERS ON BOTH ENTRY AND EXIT SIDES

WORK ROLL SIZE
- DIAMETER: .815" (20.7mm)
- ROLL FACE: 2" (51mm)

BACK-UP ROLL SIZE
- DIAMETER: 4" (102mm)
- ROLL FACE: 2" (51mm)

ROLL MATERIAL: STEEL
THICKNESS RANGE: FOR SILVER-BASED SUPERCONDUCTOR WIRE
FINISHED THICKNESS: .006" (0.152mm) TO .020" (0.5mm)
(BASED ON A WIDTH OF 0.20" (5mm)

SCREWDOWN TYPE: HYDRAULIC WITH AGC
CYLINDER FEEDBACK: SONY MAGNASCALE TRANSDUCERS
HYDRAULICS: MILLER FLUID POWER POWER UNIT AND CYLINDERS
1 1/2 HP (1.1 KW) 1150 RPM MOTOR CONSTANT TORQUE

MILL DRIVE MOTOR: 10 HP 1750/2300 RPM DC CONSTANT TORQUE

MILL SPEED:
- AS USED: 30-600 FPM (9-182m/min)
- FIELD WEEKENED: UP TO 800 FPM (243m/min)

GAUGES: (ONE) VOLLMER WIDTH AND THICKNESS GAUGE
- MODEL: VMF 3-90

WINDERS
- SHAFT DIAMETER: 1" (25mm)
- FACE WIDTH: 10" (250mm)
- FLANGE DIAMETER: 7" (178mm) WITH DRIVING PINS

- TYPE TRAVERSE: SERVO MOTOR
- TRAVERSE MOTOR: 2 HP 1750 RPM
- TRAVERSE WIDTH: APPROXIMATELY 8" (203mm)

MILL IS EQUIPPED WITH LOAD CELLS/BILLY ROLL ASSEMBLIES ON BOTH ENTRY AND EXIT
SIDES FOR TENSION FEED BACK AS WELL AS 3 1/4" (83mm) GUIDE WHEELS AFTER THE
BILLY ROLLS. MILLS IS ALSO EQUIPPED WITH AIR OPERATED ROLL LIFTERS.

DRIVE SYSTEM: HALEY CONTROLS SCR DRIVE SYSTEM WITH MITSUBISHI PLC

** Temporary Specifications Subject to Revisions**

** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
