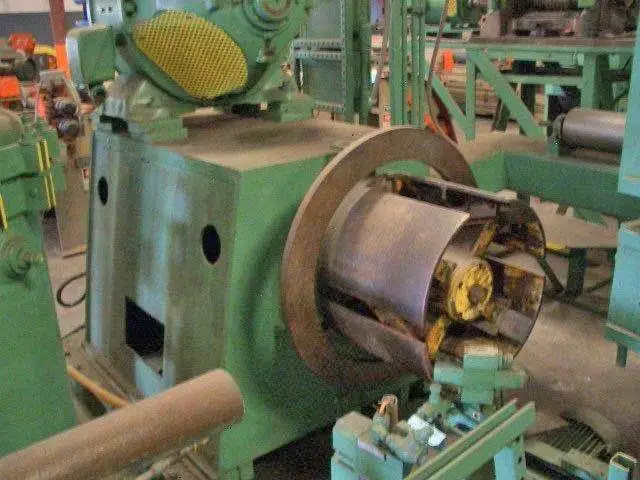

10,000 Lb X 14" SMF POWERED UNCOILER/PAYOFF (13970)

One (1) Used 14" SMF Uncoiler

MACHINE # 13970

Max. Coil Width: 12" (14" Face)
Max. Coil Weight: 10,000#
Coil I.D.: 17- 21" (Approx.)
Max. Coil O.D.: 64" (72" with Sub-base)
Pass-line: 42"
Line Direction: Either

Floor Mounted
Single Mandrel Type
Hydraulic "Wedge Type" Expansion
5" Diameter Main Shaft
Slide Base +/- 6"
25HP DC Motor (400/1200, 230 Volt)*

*No DC Controls included.

Dimensions: 64" W x 108" L x 90" T

**Temporary Specifications Subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICAITONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
