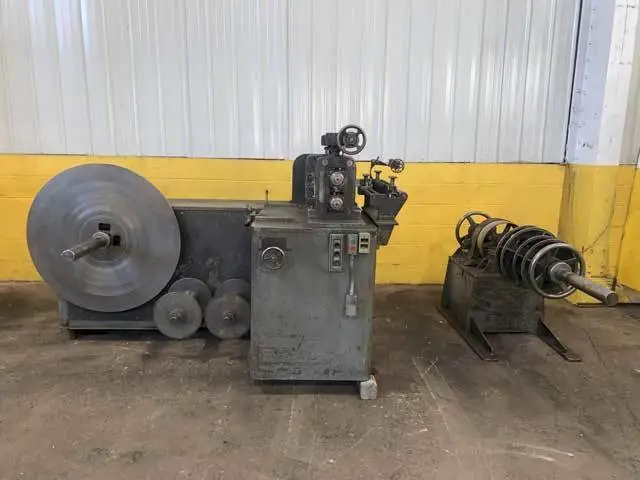

19" X 3" STANAT MODEL S-180 SLITTING LINE (13870)

MACHINE 13870

18" WIDE X 3" ARBOR STANAT MODEL #S-180 SLITTING LINE

Specifications:
SERIAL ..................... 58858
MODEL ...................... S-180
WIDTH CAPACITY ............. 18"
ARBOR DIAMETER ............. 3"

CONSISTING OF:
MANDREL TYPE UNCOILER
CAPACITY ................... 4500 LBS
BAND TYPE DRAG BRAKE ....... YES

SLITTER HEAD
WIDTH CAPACITY ............. 18"
ARBOR DIAMETER ............. 3"
ENTRY PASS LINE ROLLS ...... YES
SINGLE POINT ADJUSTMENT .... YES
VARIABLE SPEED MOTOR ....... 15HP
FINGER BOARD SEPARATION .... YES

PLATE TYPE RECOILER
WIDTH DIAMETER ............. 12" & 16"

DUAL ARBOR SCRAP WINDERS ... YES
VARI SPEED ................. YES
TAKE-UP SECTION............. YES
VARIABLE SPEED ............. YES
ASSORTED SPACERS ........... YES
KNIVES ..................... YES
MOTOR ...................... 15HP

HUGE QUANTITY OF:
KNIVES
SPACERS
SHIMS
REWIND PLATES

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
