12,000 Ton LOEWY WATER HYDRAULIC EXTRUSION PRESS (13867)

MACHINE 13867

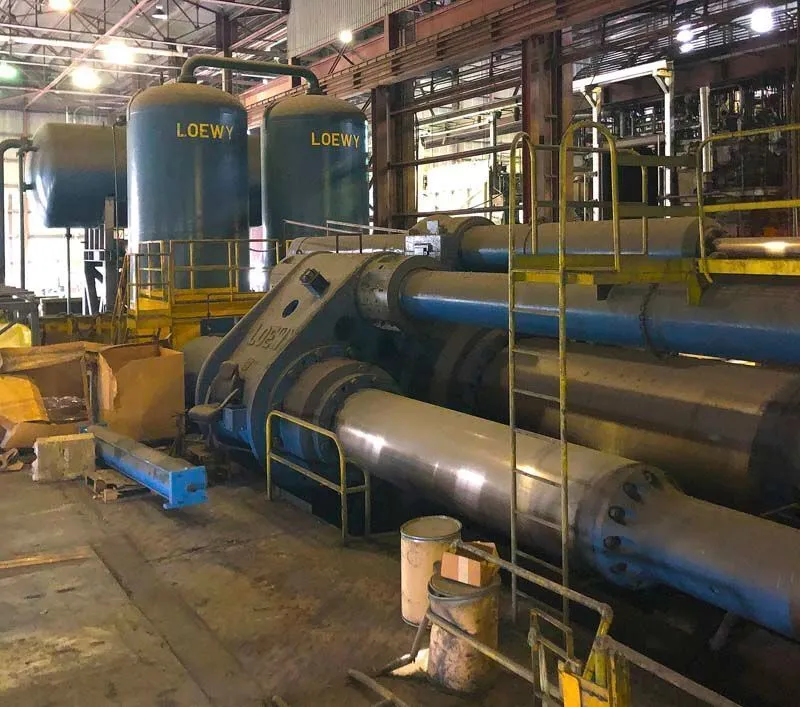

12,000 ton LOEWY-HYDROPRESS Heavy-Duty Water Hydraulic Extrusion
Press w/Mandrel System for producing hollow parts such as Heavy
Walled Pipe

Note: The Water Hydraulic Pumps that supplied the Press are not
included as they are part of a larger Hydraulic System which
supplies several other Presses.

The Press comes complete with the following:
All Valving
Prefill and Atmospheric Tanks
All related piping
All existing Entry and Exit feed tables
A Track-Mounted Action model 2860 Billet Manipulator installed
next to the Press.
Note that the manipulator needs some new valving and manifold as
well as some linkages to be 100%. The control system is still
intact and the stand-alone Hydraulic Unit that accompanies the
Manipulator will also be included. Hydraulic schematics and the
drawings to fabricate all of the components needed on the boom
and head are available. The Manipulator has a working Carrying
Capacity of 6,000 lbs fully extended but is rated at 10,000 lbs.
Complete Electrical System including all Control Cabinets
installed new in 2013
PLC Controls including the Operator Console Pulpit installed new
in 2013
A large assortment of available spare parts
All existing documentation including manuals, electrical and
hydraulic schematics, foundation drawings, etc.

Additional info:
There is an existing Furnace installed next to the Press that
could be available at additional cost as a separate item. It is
an O'Brien and Gere Pulse Fire Box Furnace with an external
footprint of 28' Wide x 22' Deep x 27' Tall. Inside Dimensions
are 22' Wide x 11' Deep x 9' Tall. If interested then we will
provide a separate offer for the Furnace. The Furnace was
installed new in 2012.

In 2013 the Press was rebuilt and upgraded at a cost of over
$3,500,000. USD. The Press Containers were rebuilt, all valves
were rebuilt with new wear components, all brass was replaced for
the container and rams and the Runout Table, the Quench System
and the Kick-Off Rack were all rebuilt. Container Heating,
Velocity and Tonnage control were all improved and a New Chop Saw
was installed. Finally, all new PLC Controls and Control Pulpit
were installed.

After this work was done, the press only ran through the end of
2014 and was shut down due to excess manufacturing capacity in
the plant.

The Press has been very well maintained and is in excellent
working condition.

It was used to produce materials such as Duplex, Super Duplex,
Nickel Alloys, Titanium Alloys, 300 Series Stainless, 400 Series
Stainless, 9 Chrome (aka P91) and Carbon Steel.

In addition to pipes it also made an array of shapes.

It was last used to produce heavy pipe up to 508mm (20") diameter
and up to 50.8mm (2") wall thickness.

On some diameters products were extruded up to 70 feet long and
then Saw Cut to length.

It is installed in a plant in the USA
and may be shown under power in case of serious interest!

Specifications
Tons 12,000 tonnes

Type Steel Tubular Sections & Pipe

Builder Loewy

Billet Diameter 660 mm (26")

Mandrel Yes

Main Ram Stroke 4,064 mm (160")

Min Billet Dia 356 mm (14")

Press Length 38 meters (125 Ft.)

Note
Additional info:

Press rated tonnage capacity as follows:
7,938.3 tons - only utilizing the Main Cylinder
4,412.8 tons - only utilizing the (2) Lateral Side Cylinders -
12,138.8 tons - utilizing the Main and the (2) Lateral Side Cylinders
together

Billet size:
max diameter - 26.0" (660.4 mm)
min diameter - 14.0" (355.6 mm)
max length - 65.0" (1,651 mm)

Press Rams:
Central main ram cylinder tonnage rating - 8,000.0 tons
Central main ram cylinder diameter - 68.687" (1,744.6 mm)
Main ram stroke - 160.0" (4,064.0 mm)
Lateral auxiliary side cylinders tonnage rating x (2) - 2,000.0 tons each
Lateral side Rams diameter x 2 (each) - 35.812" (909.6 mm)
Lateral side ram stroke - 160.0" (4,064.0 mm)
Pullback Rams diameter x 2 (each) - 19" (482.6 mm)
Pullback ram stroke - 160.0" (4,064.0 mm)

Mandrel Rams:
mandrel ram tonnage rating - 511.0 tons
mandrel ram diameter - 17.5" (444.5 mm)
gandrel ram stroke - 65.0" (1,651 mm)
mandrel return ram tonnage rating x 2 (each) - 250.4 tons each
mandrel ram diameter each - 12.25" (311 mm)
mandrel return ram stroke - 65.0" (1,651 mm)
Container Rams:
container ram tonnage rating x 2 - 418.5 tons each
container ram diameter - 19" (482.6 mm)
container ram stroke - 69" (1,752.6 mm)
container extend rams tonnage rating x 2 - 60.1 tons each
container extend rams diameter x 2 - 12.25" (311 mm)
container extend rams stroke - 69" (1,752.6 mm)
Side cylinder Boring diameter for cylinder bushings:
Outside diameter: 1,450mm
Inside diameter: 915mm
Length: 5.6 meters
Weight: 29 tons
Side Ram dims:
Outside diameter: 910mm
Length: 5.3 meters
Weight: 18 tons

**Temporary Specifications Subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
