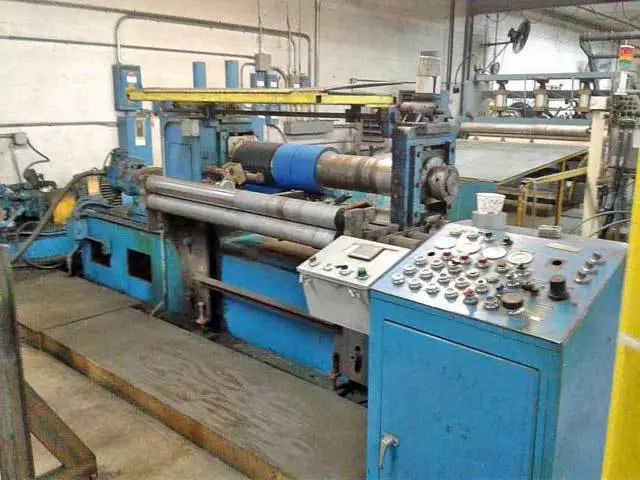

48" (1219mm) X 4.75" (121mm) BRANER SLITTING LINE (13786)

MACHINE 13786

48" x 4.75" x 20,000lb Slitting Line

YEAR: 1965

-48" Wide
-20,000 lb. Capacity
-Line Direction: Left to Right

Consisting of the following:

-Entry Coil Car: Progressive, New in 1993
Model: 82493
S/N: 2952
"L" Type Design
49" Wide Bed
72" O.D. Capacity
Approx. 9" from Floor to bottom of "V" Cradle
Self-Contained Hydraulics
Hand Pendant Control
Retractable Cable Reel
Overall Size: 80" L x 53" W x 61" High

-Mandrel Uncoiler: Braner
(4) Segment Mandrel
51" Face Mandrel
Hydraulic Expansion Range: 15" - 20.5"
Coil I.D. Range: 16" - 20"
Sliding Base
Hydraulic Motor Feedup w/Air Clutch
Fawick Air Brake
Passline: 51.5" from Floor to center of Mandrel
Base Plate: 67" L - R x 78" F - B
Overall Size: 161" L x 68" W x 78" High

-Slitter Head: New in 1985
4.75" Dia. x 50" Face Arbors
Outboard slides in to 24" wide
Entry Passline Rolls
4" Dia. x 56" Face
Entry Side Guides
Hydraulic Motor Adjustment
Parallel Arbor Adjustment
Hydraulic Motor Driven
Passline: 38"
Overall Size: 157" L x 48" W x 69" High

-(2) Scrap Winders:
Manual Scrap Ball removal
Air Motor Driven
Less Oscillate Wind Assembly

-Pad Type Tension Stand: New in 1990
Entry Catenary Rolls
Entry Passline Rolls
4" Dia. x 49.5" Face Width
Entry Separator Tooling Bar
(3) Air Cylinders for Pad Pressure
Exit Passline Rolls
6" Dia. x 50" Face Width
Passline: Adjustable from 45" - 47"
Overall Size: 65" L x 52" W x 70" High

-Recoiler:
16" Dia. x 52" Face Drum
Hydraulic Grip and Expand (Gripper Bar Missing)
Hydraulic Pushoff
Hydraulic Drive Motor
Reducer w/12.5:1 ratio
Passline: 26" from Floor to center of Drum
Overall Size: 134" L x 68" W x 48" High

-Free Standing Overarm Separator:
49.5" L Tooling Bar
Air Cylinder Operated
Overall Size: 70" L x 32" W x 75" High

-One Arm Turnstile:
Manual Rotation
Hydraulic Pushoff
Self-Contained Hydraulics

-Main Operators Control Panel:

-Main Hydraulic Unit #1:
For use with Slitter Head Drive

-Main Hydraulic Unit #2:
For use with Recoiler Drive
With Cooler

-(2) Additional Hydraulic Units:

-Slitter Tooling:

**Temporary Specifications Subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
