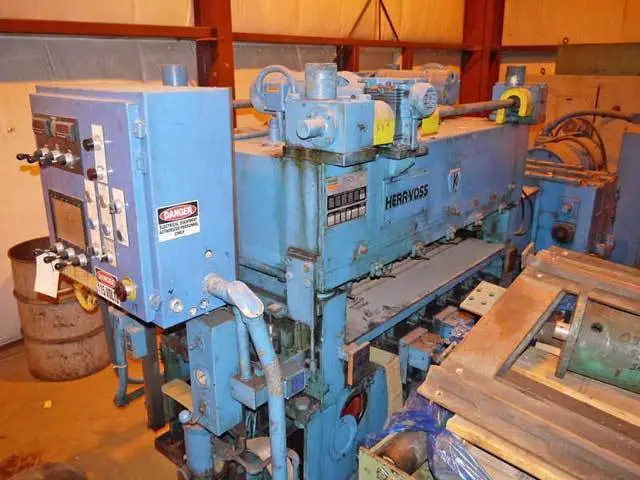

48" (1219mm) x .075" (2mm) HERR VOSS LEVELER (13779)

MACHINE #13779

SPECIFICATIONS:

Manufacturer: Herr Voss
Capacity: 48" (1219mm) x 0.020" (.51mm) - 0.075" (2mm)
Material: 45,000 psi Yield Strength
17 Rolls
1.5" (38mm) Dia. x 54" (1371mm) Face Rolls
5 Flights of Backups
3 Flights motorized
Line Speed: 30 - 210 FPM
Drive Motor: 40 HP Westinghouse DC, 1750/1950 RPM, 240 V with blower
Falk Reducer with 3.339:1 Ratio
Passline Height: 42" (1066mm)
Overall Size: 207" (5258mm) Length x 66" (1676mm) Wide x 78" (1981mm) High x
18,000 Lbs. (8164 Kg)
Line Direction: Left to Right

** CATALOG SPECIFICATIONS NOT VERIFIED BY SELLER **

** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

** SPECIFICATIONS SUBJECT TO REVISIONS **

** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
