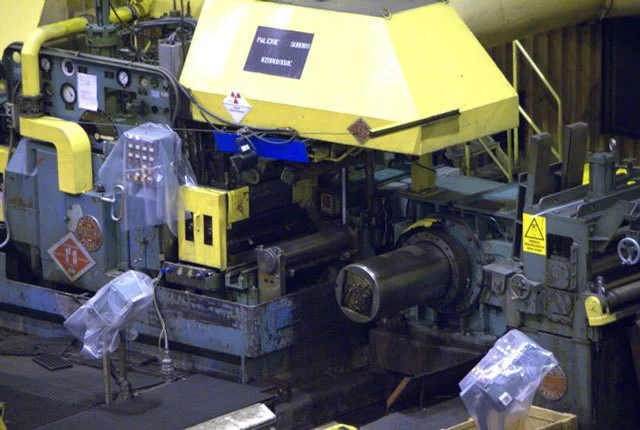

31" (787.4mm) WATERBURY FARREL SENDZIMIR MILL (13727)

MACHINE 13727

Manufacturer: Waterbury Farrel Company USA

ZR23-31 Sendzimir 20HI Mill as loaded in containers as follow
Strip Width: 370-740 mm
Thickness: 3.5-0.04mm (Material M70-A, Last pass from 0.12 to 0.04 mm)
Force Adjustment: 55000 kg
Tension: 21%,Back Tension 26%
AGC System by Gamma system
Main Motor: 597kw, 400/800 rpm
Payoff reel: 56kw 500/1300 rpm, Gear box ratio: 12.6:1
Tension reel(2): 880kw 500/1300 rpm, Gear box ratio: 4.35:1
Work Roll dia: 61 mm,
Intermediate 1st roll dia: 89 mm,
Driven roll dia: 146 mm
Schneider Filter
Revamped/Overhauled by I2S

**Temporary Specifications subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
