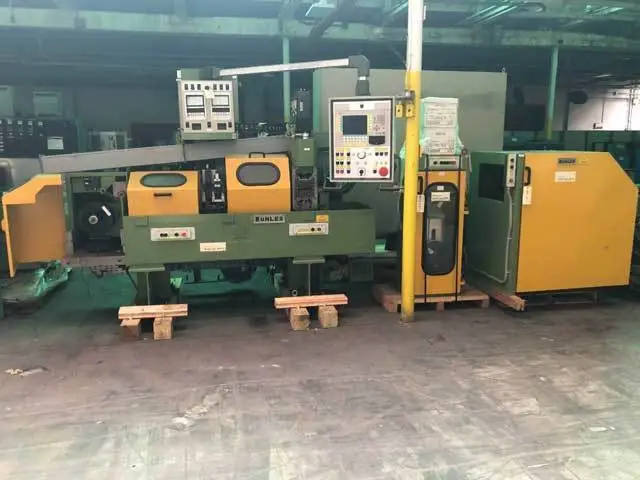

3-3/8" (85mm) x 1-3/8" (35mm) BUEHLER SINGLE STAND WIRE FLATTENING MILL (13634)

MACHINE #13634

MANUFACTURER: BUEHLER & CO GmbH

General data

Roll diameter: 85mm (3.350")
Roll Width: 35mm (1.377")

Screwdowns: Powered

Electric connection 480 v,
Control voltage 230 v
Magnetic valves 24 V, GS
compressed air
working speed 0-120m/min

working direction right to left

Material data

Material Ag with ceramic core, coppers & stainless
Thickness: 0,15mm (0.0059") mininium
0,30mm (0.0118") maximium
Width: 2,50mm (0.1") minimum
4,00mm (0.157") maximum
Thickness tolerance: +/- 0,001mm (0.00004")
Width tolerance: +/- 0,05mm (0.002")

Uncoiler
Coil Weight: 40 - 150 kg (88-330 lbs)
Coil inside diameter: 224 - 940mm (8.8" - 37mm)
Coil outside diameter: 355 - 1000mm (14" - 39.37")
Coil width: 160 - 500mm (6.3" - 20")

Taking-up device
coil inside diameter: min. 224mm (8.8")
coil outside diameter: max. 355mm (14")
coil width: 160mm (6.3")
Power coil drive: 30 kg (66 lbs)

**Please note catalogue specifications**

**Temporary Specifications Subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
