24" X 5" RAMEC/RUESCH SLITTING LINE (13591)

MACHINE 13591

Mfg - Ramec/Ruesch
Year - 1993
Max Width - 24"
Entry ID - 12"-21"
Exit ID - 16"

Line Components:

Ramec Mandrel Uncoiler
Mdl. RPA-6
S/N 1474A
Coil ID Range - 12"-21"
Max Coil Width - 24"
4-Leaf Hydraulic Expansion w/Air Brake
Floor to Mandrel - 36"
Self Contained Hydraulic Unit - 1/2 HP, 115/230/1/60

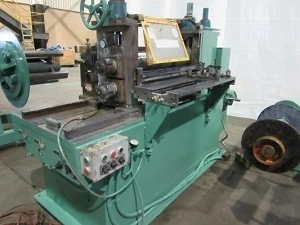

Ramec Driven Slitter Head
Mdl. 7318
S/N - 1747B
Inlet Roller Guides
Arbor - 5 " Diameter x 32" Face
Exit Roller Supports
Louis Allis Adjust-A-Speed Drive
No tag on motor - approximately 20-25 HP AC

Ramec Motorized Scrap Winder
3 HP, 230/460/3/60

Ruesch Hydraulic Tension Stand
W/ Inlet and Outlet Cantilver Tables

Ramec Mandrel Recoiler
W/ Grip Slot
Mdl. RPWA
S/N 1474C
Coil ID - 16"
Max Coil Width - 32"
Floor to Mandrel - 36"
Pneumatic Overarm Seperator
Hydraulic Pushoff
Louis Allis Adjusta-A-Speed Drive - 30 HP, 230/460/3/60

Entry or Exit 2-Arm Turnstile
36" Max Width
Manual Rotation

Console and Control Cabinet

Payoff Reel - 9' 4" L x 40" W x 60" H
Slitter Head - Unknown
Tension Pad - 5' 2" L-R x 80" F-B x 6' 8" H
Recoiler - 11' L x 34" W x 83" H (w/ overarm separator arm)

**Temporary Specifications Subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
