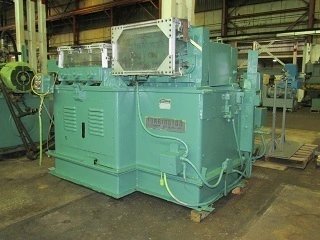

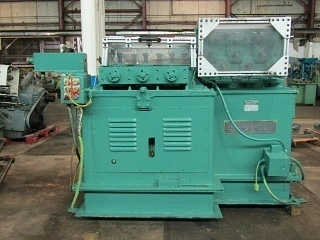

1" (25mm) TORRINGTON MODEL 1821 12-ROLL TUBE & BAR STRAIGHTENER (13551)

MACHINE# 13551

MANUFACTURER: TORRINGTON (U.S.A.)
MODEL No.: 1821
NUMBER OF ROLLS: 12 (6 HORIZONTAL & 6 VERTICAL)
TUBE CAPACITY: .375" (9.5mm) - 1" (25mm)
BAR CAPACITY: .750" (19mm)
HEX CAPACITY: .719" (18.25mm)
MAXIMUM YIELD: 60,000 PSI
LINE DIRECTION: LEFT TO RIGHT

EQUIPPED WITH:
DC MOTOR, 30 HP 1150 RPM @ 500 VOLTS

OVERALL DIMENSIONS: 8'10" Long x 8' Wide x 5'6" High APPROX.
WEIGHT: 11, 800 lbs. (5,350 KG) APPROX.

** SPECIFICATIONS SUBJECT TO REVISIONS **

** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
