MODEL UDZWG 1250 SKET 13 DIE WIRE DRAWING LINE WITH IN LINE ANNEALER AND COILER
(13518)
STOCK #13518

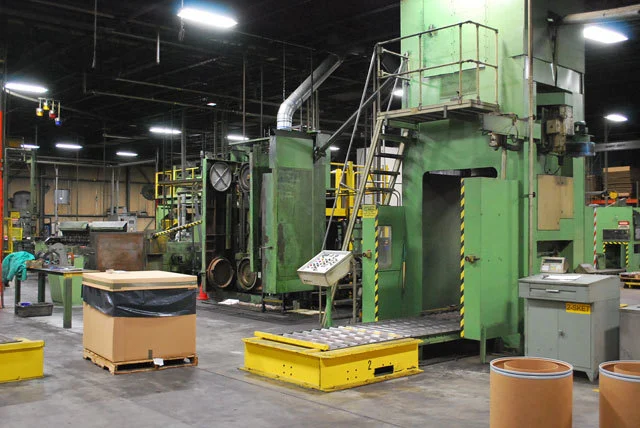

Sket Rod Machine and Annealer with Bongard Coiler
Sket tandem rod drawing machine
Model: UDZWG 1250
Number of drawing dies: 13
Diameter of drawblocks: 500mm - 20"
Drawblock material: Steel
For cooper and aluminum rod
Maximum aluminum inlet diameter: 15mm
Maximum copper inlet diameter: 9mm
Minimum aluminum outlet diameter: 1.8mm
Minimum copper outlet diameter: 1.0mm
Maximum drawing speed: 35 meters per second
Reduction of cross-sectional area / draw: 26%
Finishing drawblock water-cooled, grooved 500mm capstan
Wire line height: 1.0 m
350 HP AC Toshiba motor / drive
Electrics: 460 V
Sket rod annealer
Independently driven
60 HP AC motor / drive
Vertical dancer
800mm Bongard drop coiler
Model KW: 800
Year of manufacture: 1994
Drive Panelwith 350 / 60 HP AC drives
Condition: As Is
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED IS AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
