GENERAL ELECTRIC MODEL G.E. USIP 40 ULTRASONIC TESTER FOR TUBE (13494)

MACHINE# 13494

SPECIFICATIONS:

Manufacturer: QCS Co. Ltd. under license from General Electric Corporation
Model No.: G.E. USIP 40

Tube O.D. Range: 15.88mm (0.625") to 50mm (2")
Tube Length: Up to 30m (100 Ft.)

Main Testing Stand: Tube Rotating not Probe Rotating

Previous Use: Incoloy/Inconel for nuclear steam generator tubes settings can
be changed by adding probes and changing main test body probe block.

Flaw Detector: 10 ch with control PC per each (3 Modules exist).
Longitudinal Flaw: 4 ch
Transverse Flaw: 4 ch
O.D/I.D./WT: 5 ch

Uses:
- Weld Inspection
- Multi-Channel Flow Detection
- Wall Thickness Measurement

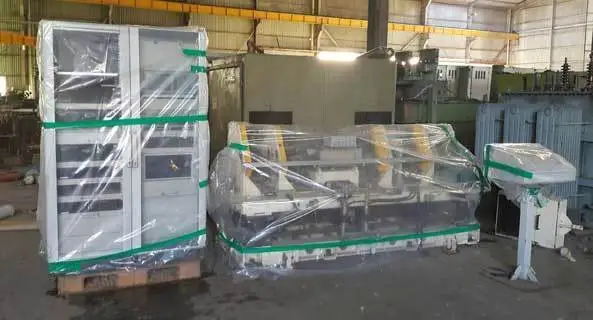

Includes GE USIP 40 Inspection Instrument, Rotating Test Stand and Operator
Station.

Cost when purchased new over $800,000. USD

- Purchaser to supply simple entry and exit tables.

Line is presently in storage.

** SPECIFICATIONS SUBJECT TO REVISIONS **

** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
