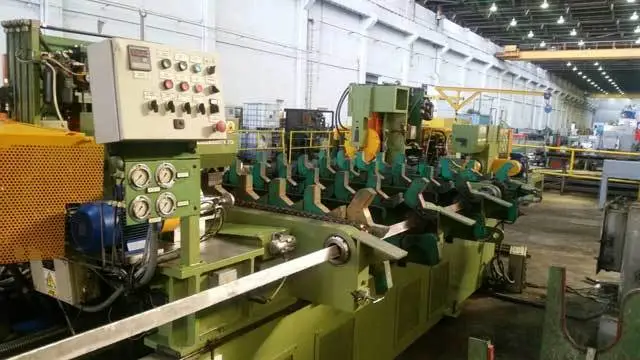

1" (25mm) - 2.5" (65mm) GUARIENTI DOUBLE HEADED CHAMFERING & CUT MACHINE (13392)

MACHINE# 13392

SPECIFICATIONS:

Manufacturer: GUARIENTI OFFICINA MECCANICA S.r.l. (Italy)
Model: SB-4
Year: 2000

Range:
- Rounds: 25mm - 65mm (1" - 2 1/2")
- Hexagons: 17mm - 40mm (0.7"" - 1.57")

Sawing head: 2
Sawing motor: 2 x 11 kW
Chamfering head: 2 Staggered
Chamfering motor: 2 x 2,8/3,3 kW
Chamfer Angle: 30 - 45 Degree
Productivity: 5-10 bar/min. depending on the bar diameter
Bars length:
- Rounds: 3000mm - 4050mm (9.8 Ft. - 13 1/4 ft.)
- Hexagons: 3000mm (9.8 Ft.)

Tension: 380 V. - 50 Hz.

Composition of the line:

- 1st cutting and chamfering head
- 2nd cutting and chamfering head
- Chains translating system
- Collecting cradles
- Head and tails bar belt evacuator
- Electric equipment with PLC SIEMENS S-7

** SPECIFICATIONS SUBJECT TO REVISIONS **
** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **
** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
