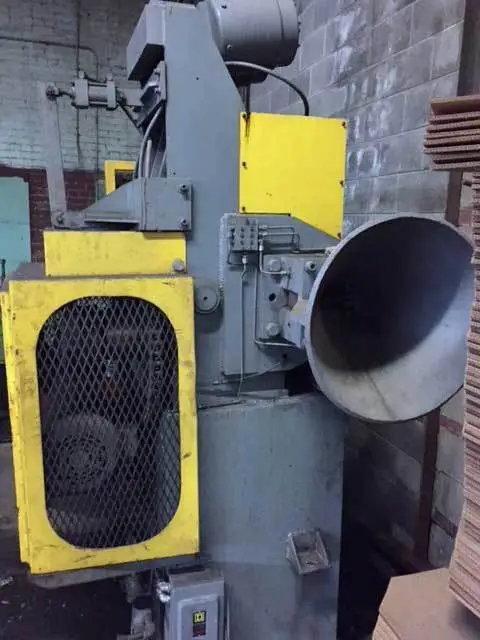

1 5/8" (41mm) FASTENER ENGINEER SB-1625 5 ROLL ROD PRE-STRAIGHTENER (13295)

MACHINE# 13295

SPECIFICATIONS:

MANUFACTURER: FASTENER ENGINEERS, INC. (U.S.A.)
TYPE: 5 ROLL IN LINE WIRE/ROD PRE-STRAIGHTENER
MODEL No.: SB1625

CAPACITY:
MAXIMUM DIAMETER ROD: 1 5/8" (41.275mm)
MINIMUM DIAMETER ROD: 1" (25.4mm)
SINGLE PLANE

ENTRY PINCH ROLLS:
ROLL DIAMETER: 12" (305mm)
No. OF PINCH ROLLS: 2
AXIS: HORIZONTAL
No. OF ROLLS DRIVEN: 2
ENTRY GUIDE BOX

STRAIGHTENER ROLLS:
ROLL DIAMETER: 11" (280mm)
ROLL FACE WIDTH: 3" (76mm)
No. OF ROLLS: 5 (2 OVER 3)
AXIS: HORIZONTAL
FEED ROLL DRIVE MOTOR: 5 HP
DIRECTION OF TRAVEL: LEFT TO RIGHT

PNEUMATIC ACTUATED REVERSE CLUTCH
FEED ROLL OVERRUNNING CLUTCH
SAFETY GUARDS
HEAVY DUTY PRE-LUBRICATED SEALED BEARINGS
STRAIGHTENER ROLLS ARE INDIVIDUALLY ADJUSTABLE AND CAN ACCOMMODATE 1" TO
1-5/8" ROD WITHOUT A ROLL CHANGE.

OPERATOR STATION WITH:
FEED FORWARD-REVERSE
PREFEED FORWARD-REVERSE
DISENGAGE PREFEED HEAD
STRAIGHTENER ENGAGE-DISENGAGE
AUTOMATIC OR MANUAL
EMERGENCY STOP

AUTOMATIC TIMED GREASE LUBRICATION OF ALL BEARINGS USING A TRABON LUBRIQUIP
MAXI-MONITOR CONTROLLER.

** SPECIFICATIONS SUBJECT TO REVISIONS **

** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
