(13280)1/4" - 1-1/2" Medart model TPVC12-12 (2) Plane Shape Straightener, 25hp, weighs 36,800 lbs Stock # 13280

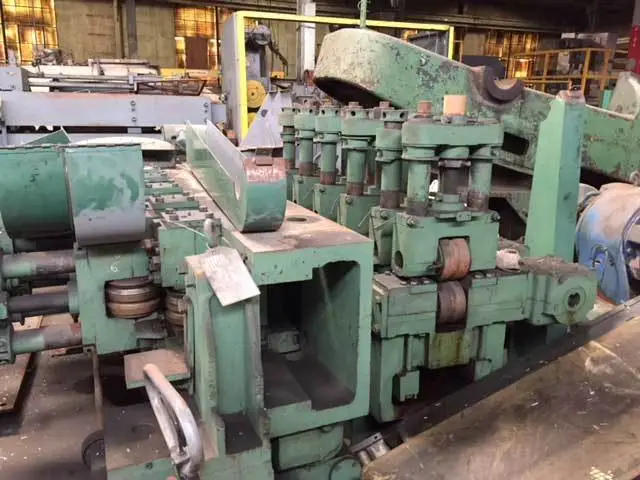

1/4" - 1-1/2" Medart model TPVC12-12 (2) Plane
Shape Straightener
MACHINE# 13280

Specifications
Max Square: 1.5"
Max Hex: 1.6"

Type: Shape Straightener
Builder: Medart
Model: #1 - TPVC12-12
Age: 1950
Minimum Square: .4 "
Minimum Hex: .4 "

Primary drive motor power: 25 h

Additional info:

5/8" x 2/1/2" - Flats Nominal
3/8" x 1/1/2" - Squares Nominal
3/8" x 1-5/8" - Hexagons Nominal
3" x 3" x 3/8" - Angles Nominal
Standard Roll Diameter x Face - 8" x 4/1/2"
Machine Dims: 10' 6" wide x 5' 8" high
No. OF ROLLS PER SET: 24 (12 VERTICAL x 12 HORIZONTAL)

DRIVE MOTOR:
25 HP, 1200 RPM, 440 VOLT, 3 PH., 60 HZ, ALLIS CHALMERS

CHAIN DRIVE

FLOOR SPACE:
LENGTH: 10' 2" (3.1m)
WIDTH: 10' 6" (3.2m)
HEIGHT: 5' 8" (1.7m)
WEIGHT: 36,800 LBS. (16,700 KG)

** TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS **

** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
