12" (305mm) x 12" (305mm) HEM 1000AH HORIZONTAL BAND SAW (13210)

MACHINE# 13210

SPECIFICATIONS:

MANUFACTURER: HEM INC. (U.S.A.)
MODEL No.: 1000AH
SERIAL No.: 235085

MAXIMUM WORKPIECE AS DESIGNED:
12 3/4" (324mm) ROUND
12 3/4" (324mm) FLAT

ECONOMIC MAXIMUM:
12" (305mm) ALUMINUM & BRASS
8" (203mm) MILD STEEL
6" (152mm) STAINLESS

OPTIMUM CAPABILITY:
8" (203mm) ALUMINUM & BRASS
5" (127mm) MILD STEEL
4" (101mm) STAINLESS

AUTOMATIC FEED SYSTEM:
LENGTH OF FEED STROKE: 0-14" (0-356mm) OR (0-24" (0-610mm)
MULTIPLE INDEX: 10 TIMES
DESIGN MAXIMUM: 12 3/4" (324mm) x 12 FT. (3.65m)
ECONOMIC MAXIMUM: 9" (228mm) x 12 FT. (3.65m)
OPTIMUM CAPABILITY: 5" (127mm) x 20 FT. (6.09m)

MAIN VISE
OUTBOARD SHUTTLE VISE
OUTBOARD HOLDING VISE
HOLDDOWN ROLLER

HEM ALL-FUNCTION CONTROL

MODES AVAILABLE:
- MANUAL
- SEMI-AUTOMATIC
- FULL AUTOMATIC
- MULTIPLE INDEXING FOR LONGER LENGTHS
BUILT-IN DIAGNOSTIC PANEL

MOTOR: 3 HP, 220/440 VOLT, 3 PH., 60 HZ
SHIPPING WEIGHT: 3000 LBS.
BLADE SIZE: 1" x 12 FT. x 10" x .035" THICK
(25m x 3.91m x 0.89mm)

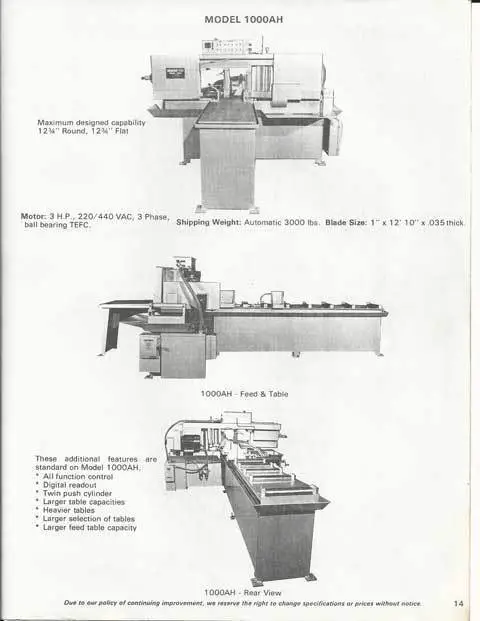

MODEL 1000AH INCLUDES:
- ALL FUNCTION CONTROL
- DIGITAL READOUT
- TWIN PUSH CYLINDER
- LARGER TABLE CAPACITIES
- HEAVIER TABLES

MACHINE IS IN STORAGE.

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
