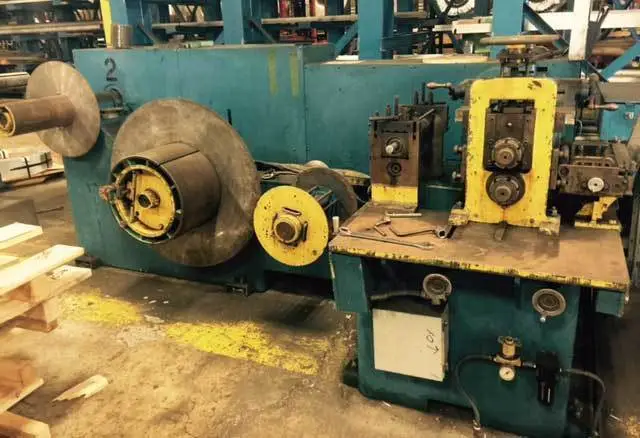

14" (355mm) x 3" (76mm) RUESCH MODEL 149 SLITTING LINE (13182)

MACHINE 13182

Manufacturer: H J Ruesch Machine Co

MODEL: 149

Gauge Range 005-063 (aluminum/steel/brass/copper/stainless/inconel/gold)

Minimum width: 0.250" (6.35mm) wide

Maximum Width: 14 (355mm) wide

Uncoiler I.D. Range 16" to 20" Max O.D 48" X 24 WIDE COOPER WEYMOUTH

Max Coil weight: 10000 Lbs (5 tons) Uncoiler side

Ruesch Ring Slitter Head
Arbor size: 14" (355mm) width x 3" (76.2mm) Diameter

3" (76.2mm) Shafts Lots of tooling includes knifes spacers roller rings

Recoiler Capability: 8" (203.2mm) I D x 24" (609.6mm) O D
12" (304.8mm) I D x 32" (812mm) Max O D
16" ((406.4mm) I D x 36" (914.4mm) Max O D

Max Coil Weight 2000 Lbs (1 ton)

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
