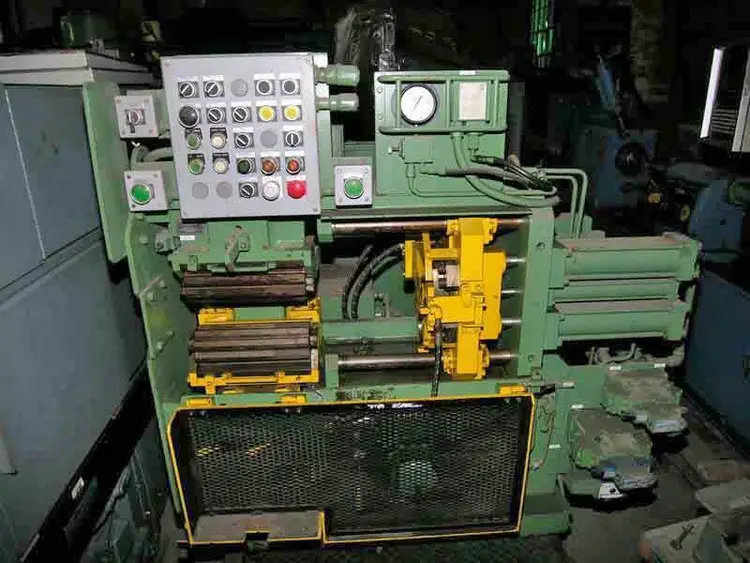

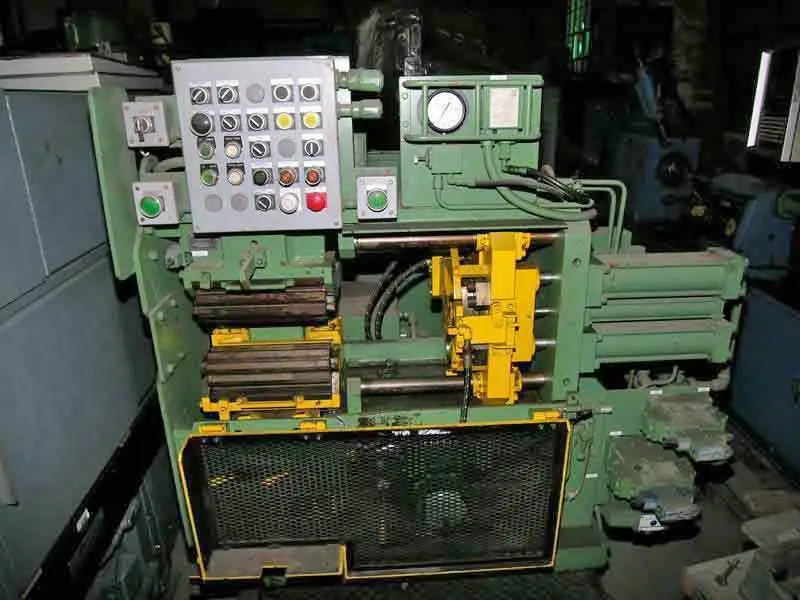

1 1/16" (27mm) MITCHELL HYDRA-PUSH 2-DIE HYD. COILED ROD PUSH POINTER (13114)
MACHINE# 13114
Originally built for Nelson Steel & Wire. It was used to point coiled rod
coming off of a horizontal payoff going to a vertical bullblock. Pointer
slides into alignment between payoff and drawer to point the coil then
slides back out of the way.
Specifications:
Manufacturer: George Mitchell & Co. (U.S.A.)
Type: Hydra-Push 2-Die Hydraulic Coiled Rod Push Pointer
Year of Manufacture: 1978, Rebuilt in 1998
Capacity:
Rated - 33,000 Lbs. (14969 KG) @ 1989 PSI
Maximum - 41,480 Lbs. (18815 KG) @ 2500 PSI
Automatic Cycle: (1) or (2) Die Reduction in Point Mode or Nibble Mode:
Die #1: Up to 4 Nibble Strokes
Die #2: Up to 4 Nibble Strokes
Pointing Speeds:
Advance - 212 IPM @ 2000 PSI
Return - 271 IPM @ 1000 PSI
Die Holder: 2-Hole Rotary with 4.010" (101.8mm) O.D. w/3" (76mm) I.D. Round x
2-9/32" (57.9") Deep Cavities, w/1-1/2" (38mm) Dia. Relief Hole Behind Die
Point Length: Automatic By (3) Position Selector Switch
Maximum Travel of Dies: 12" (304mm)
Length of Gripper Jaws: 13" (330mm)
Die Index Mechanism: Hydraulic Cylinder
Clamping Mechanism: Hydraulic Cylinder & Double Toggle
Traverse Mechanism: Hydraulic Motor
Tube Gripper Jaws: Octagonal - Quick Rotate Type (8 Sided)
Current Grip Sizes: .625" (15.8mm), .687"(17.4mm), .750" (19mm), .812"
(20.6mm), .875" (22mm), .937" (23.7mm), 1" (25mm), 1.062" (26.9mm)
Current Est. Pointing Dies for Taking 1-1/16" (26.9mm) Down to 7/8" (22mm)
in Two (2) Hits
EQUIPPED WITH: Push-Button & Controls; Vickers Pumps & Valves.
MOTOR DATA:
Hydraulic - 20 HP Reliance, 230/460/60/3-1160 RPM
Coolant - 1/2 HP Reliance, 230/460/60/3-1140 RPM
O.A. DIMENSIONS: 6' (1.82m) W x 11'4" (3.45m) L x 6'2" (1.879m) High
WEIGHT: 6,900 Lbs. (3129.8 KG) Approx.
NOTE: Machines appears to be nearly unused since 1998 rebuild.
* Included: Photos, Complete Manuals, Prints, and Schematics
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
