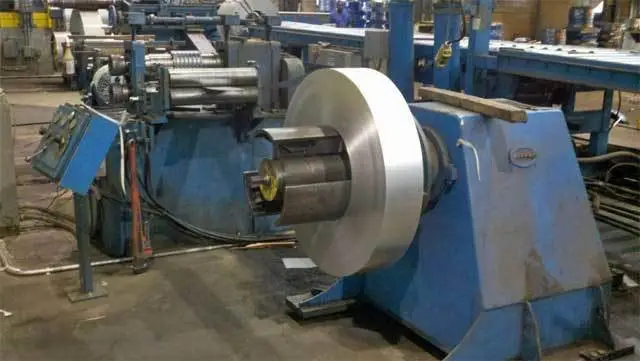

18" (457mm) x 4 1/4" (108mm) STANAT LOOP SLITTING LINE (12951)

MACHINE# 12951

SPECIFICATIONS:

MANUFACTURER: STANAT PRECISION MACHINE CO. (U.S.A.)
ARBOR WIDTH: 18" (454mm)
ARBOR DIAMETER: 4 1/4" (108mm)
TYPE: LOOPING PIT WITH DRIVEN HEAD
MATERIAL USED: STAINLESS, GALVANIZED, TINPLATE, BRASS
GAUGE RANGE USED: 0.005" (.127mm) TO 0.045" (1.143mm)

PAYOFF:
MANUFACTURER: STANAT PRECISION MACHINE CO. (U.S.A.)
MODEL: 7M-24
TYPE: EXPANDING MANDREL
PAYOFF WIDTH: 24" (610mm)
PAYOFF I.D. RANGE: 14 1/2" (368mm) TO 18 1/2" (470mm)
MAXIMUM COIL WEIGHT: 7,000 LBS. (3175 KG)
TENSION STAND:
TWO ROLL
DRAW TYPE

SLITTER HEAD:
DRIVEN 40 HP, 650-2000 RPM, 500 V, D.C. VARISPEED
ARBOR ADJUSTMENT: HANDWHEEL

SCRAP WINDER

RECOILER:
I.D. RANGE: 15 1/2" - 16" (394mm - 406mm)
DRIVE MOTOR: 15 HP, 1750-2300 RPM, 240 V, RELIANCE
OVERARM SEPARATOR
HYDRAULIC PUSHOFF: ONTO TWIN ARM TURNSTILE

** MACHINE IS NO LONGER IN OPERATION **
** DISMANTLED AND LYING IN STORAGE **

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
