9" x 2.50" National Standard Slitting Line (12674)
Have one to sell?
ConditionUsed
1 available

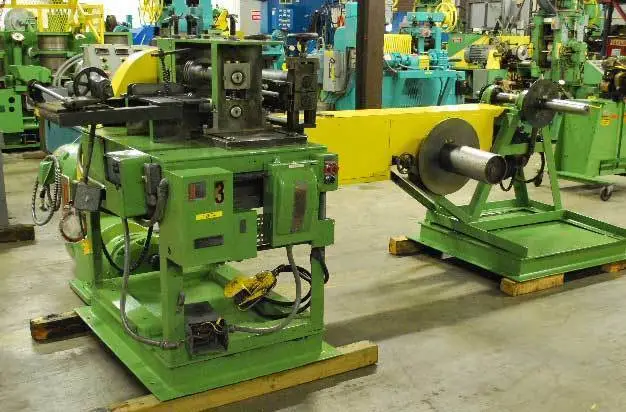

Discover the power of efficiency with this used 9" Slitting Line, complete with dual take-ups. Crafted by Industrial Steel Custom, this model offers a thickness range between 0.020" and 0.062", handling anywhere from 6 to 9 cuts. Proudly featuring a 15 HP motor powering both winders and the slitter head, its manual entries and wooden fingers offer you precise control over your craft. Its overall length is 11.3 feet plus payoff, including an array of tooling. A perfect addition to enhance your productivity.
MACHINE# 12674
National Standard Slitting Line
Pull Thru Slitting Line with Dual Takeups
-Capacity:
Material Width: 9"
Thickness Range: 0.020" (0.508mm) - 0.062" (1.57mm)
Number of Cuts: 9 Cuts 0.020" (0.508mm) approx.
6 Cuts 0.062" (1.57mm) approx.
Line Direction: Left to Right
Consisting of:
-Uncoiler:
Type: Non-Driven Expanding Mandrel
Mandrel Face Width: 12" (305mm)
Expansion Range: 11.5" (292mm) - 12" (305mm) Dia.
Type Expansion: Manual
Passline Height: 31" (787.4mm)
Brake for Back Tension: Manual Band Brake
Maximum Coil O.D.: 36" (915mm)
Overall Size: 41" L x 39" W x 54" High
-Slitter Head:
Arbor Size: 2.50" (63.5mm) Dia. x 10" (254mm) Face
Entry Side Guides: Manual
Vertical Arbor Adjustment: Manual
Knife Separation: Wooden Fingers
Exit Pinch Rolls: 3.250" (95mm) Dia. x 13" (330mm) Face
Strip Counter: Durant Model 5-H-1-R-CL, S/N: 262
Knife O.D.: 5.50" (140mm)
Spacer O.D.: 3.750" (95mm)
Passline Height: 42.5" (1080mm)
Overall Size: 49" L x 43" W x 55" High
-Recoilers:
Winder No. 1:
6.50" (165mm) Drum Dia. x 14" (355mm) Face Width
16" (406mm) Max. O.D.
with Warner Electric Brake
Winder No. 2:
2.750" (70mm) Shaft Dia. x 14" (355mm) Face
with Warner Electric Brake
Winders Use Separator Discs
Overall Size: 94" L x 40" W x 41" High
-Drive Motor:
Powers both Winders and the Slitter Head
15 HP AC, 1760 RPM, 230/460 Volts, 44/22 amps
Reeves Variable Speed Drive Model No.: Motodrum
Size: 8441, Ratio: 2.8 to 1
Output RPM: 182 - 1430 RPM
Overall Size: 53" L x 20" W x 31" High
-Overall Length of Slitting Line: 11.3 Ft. (3.44M) Plus Payoff
-Includes Large Quantity of Tooling
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
