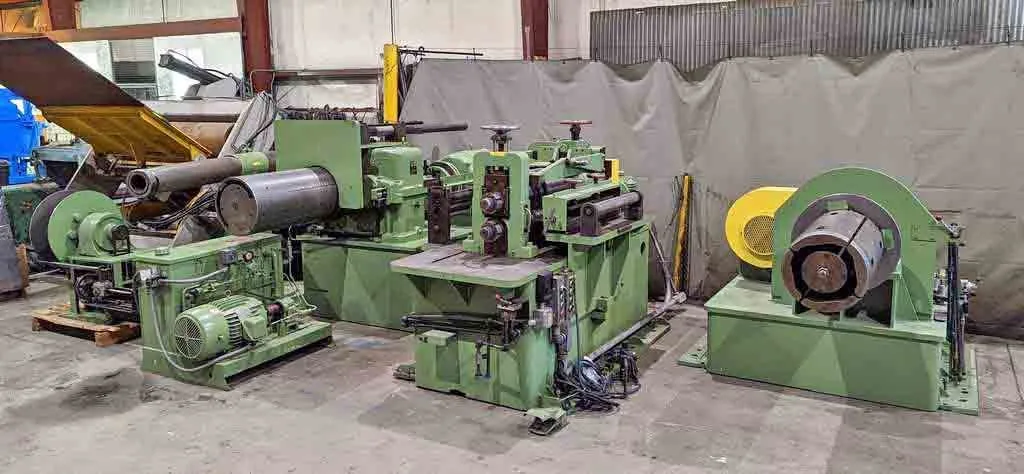

24" (609mm) RUESCH MODEL 146 RING SLITTING LINE (12672)

MACHINE# 12672

MANUFACTURER: RUESCH MACHINE CO.

TYPE SLITTER: PULL THRU RING SLITTER
MODEL: 146
SERIAL No.: N2094B 5407

ARBOR SIZE: 27" (685mm) x 4 1/8" (105mm)

MATERIAL SPECIFICATIONS:
TYPE: STEEL, STAINLESS STEEL AND COPPER ALLOYS
STOCK WIDTH: MAXIMUM 25" (635mm)
COIL O.D.: MAXIMUM 48" (1220mm)
COIL I.D.: MAXIMUM 20" (508mm)
REWOUND I.D. OF COIL: 16" (406mm)
COIL WEIGHT: 6,000 LBS. (2720 KG)
STOCK THICKNESS - MAXIMUM:
AS PER CATALOG: .125" (3.175mm)
AS PER ORIGINAL ORDER: . 080" (2.0mm)
AS USED - MAXIMUM: .093" (2.36mm)
AS USED - MINIMUM: .015" (0.3mm)

DIRECTION OF TRAVEL: LEFT TO RIGHT

LINE SPEED ON TWO SPEED MOTOR:
AT 900 RPM: 112/337 FPM (34/102m/min.)
AT 1800 RPM: 225/675 FPM (68/205m/min.)

PAYOFF/UNCOILER:
MANDREL EXPANSION: 15 1/2"/18" (393.7/457.2mm) HYDRAULIC EXPANSION
MANDREL WIDTH: 28" (711.2mm)
NON-DRIVEN
BACK TENSION: AIR CLUTCH
MANUFACTURER: WITCHITA AIR CLUTCH
SERIAL No.: 22131 B 224
LINK BELT GEARBOX: ROLLER BEARING
AIR CONTROLS: NUMATICS WORLDWIDE
COOLING SYSTEM: CHAMPION SIZE 1-3/4FC
SERIAL No.: 11214

SLITTER HEAD:
SINGLE ENTRY BILLY ROLL: 3 1/4" (82mm) DIA. x 27" (685mm)
ENTRY STRIP HOLDDOWN: MANUAL VERTICAL ADJUSTMENT
ARBOR SIZE: 4 1/8" (105mm) x 27" (685mm) FACE WIDTH
SLITTER HEAD ADJUSTMENT: HANDWHEEL ON BOTH SIDES
THREADING MOTOR: 3 HP, 208-220/440 VOLT, 1760 RPM, 9/4.5 AMPS,
LOUIS ALLIS W/GEAR RATIO 100 TO 1
SPACER O.D.: 6 1/8" (155mm)
KNIFE O.D.: 7" (178mm) MAXIMUM, 6" (152mm) MINIMUM
RING: 7 1/4" (184mm) O.D. x 6 1/4" (159mm) I.D.

SCRAP WINDER:
MAXIMUM TRAVERSE: 8" (203mm)
COIL I.D.: 16" (406mm)
MAXIMUM COIL O.D.: 24" (610mm)
DRIVE MOTOR: 5/2.5 HP, 460 VOLT, 1740/870 RPM, 9.2 AMPS,
3 PHASE/60 HZ, LOUIS ALLIS
GEARBOX:
LOUIS ALLIS S/N 1W-30540, INPUT RPM 1750, OUTPUT RPM 155, RATIO 11.4 TO 1

RECOILER:
MANUFACTURER: H.J. RUESCH MACHINE CO.
TYPE: EXPANDING MANDREL
MANDREL SIZE: 15/16" (380/406mm) I.D. x 28" (711mm) FACE WIDTH
TYPE OF EXPANSION: HYDRAULIC
COIL PUSHOFF: HYDRAULIC
SEPARATOR PLATES
DRIVE MOTOR: 50/25 HP, 1775/890 RPM, 64/43 AMPS, 3PH., 60 HZ, TYPE C0GMX,
S/N 3274629001 W/SLIP CLUTCH FOR ACCELERATION CONTROL AND TIMING BELT DRIVE
AIR BRAKE FOR BACK TENSION: LOUIS ALLIS MAGNETIC MODEL 1-042-031-1,
TORQUE 230 FT. - LBS., 440 VOLT, 3 PH., S/N B-386-463

RECOILER TURNSTILE:
No. OF ARMS: 2
ARM SIZE: 7 1/2" (190mm) DIA. x 39" (990mm) FACE
MANUAL SWIVEL

HYDRAULIC UNIT:
DRIVE: 7 1/2 HP, 1160 RPM, 9.2 AMPS, 3 PH., 60 HZ
OIL TEMPERATURE GAUGE
OIL RESERVOIR: 13" (330mm) x 36" (914mm) x 22" (558mm) HIGH

LARGE QUANTITY OF TOOLING

SPARE MANDREL FOR RECOILER

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
