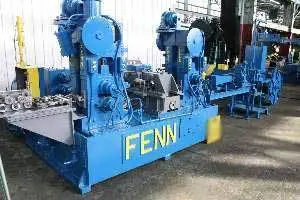

8" (203mm) x 6" (152mm) FENN 2 STAND TANDEM WIRE FLATTENING LINE (12515)

Machine # 12515

MANUFACTURER:................FENN MANUFACTURING CO. USA
MODEL:.......................082-082
TYPE MILL:...................2 STAND TANDEM WIRE FLATTENING LINE

1ST STAND
SERIAL NUMBER:...............269
ROLL SIZE:...................8" (203.2mm) DIAMETER X 2-1/2" (63.5mm) SHELL
MILL STAND CROSS SECTION:....5-13/16" (147.6mm) X 5-13/16" (147.6mm)
MILL STAND WINDOW:...........8-3/4" (222.25mm) WIDE X 20" (508mm) HIGH
SCREWDOWN:...................ELECTRO MECHANICAL
DRIVE MOTOR:.................75/100 HP DC, 500/1500 RPM, 230 V, 275/365 AMPS

EDGER:.......................FRICTION DRIVEN

2ND STAND
SERIAL NUMBER:...............270
ROLL SIZE:...................8" (203.2mm) DIAMETER X 2-1/2" (63.5mm) SHELL
MILL STAND CROSS SECTION:....5-13/16" (147.6mm) X 5-13/16" (147.6mm)
MILL STAND WINDOW:...........8-3/4" (222.25mm) WIDE X 20" (508mm) HIGH
SCREWDOWN:...................ELECTRO MECHANICAL
DRIVE MOTOR:.................75/100 HP DC, 500/1500 RPM, 230 V, 275/365 AMPS

WIDTH & THICKNESS GAUGES:....PRATT & WHITNEY

RECOILER:....................FENN TRAVERSE TAKE-UP

Mill is dismantled and placed into storage

**Preliminary Specifications Subject to Verification**

**PRICE QUOTES AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
