30" (762mm) x 4-1/4" (108mm) TORRINGTON SLITTING LINE (12430)

MACHINE# 12430

SPECIFICATIONS:

MANUFACTURER: THE TORRINGTON CO (U.S.A.)

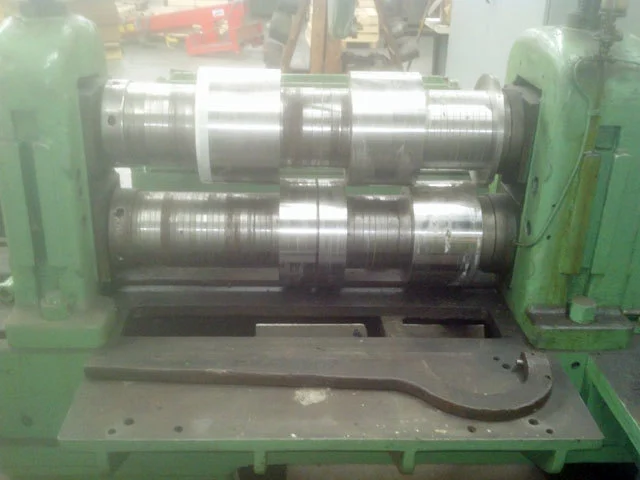

SLITTER HEAD:
ARBOR DIAMETER: 4-1/4" (108mm)
ARBOR LENGTH: 30" (762mm)
KEYWAY: 3/4" (19mm)
DRIVE MOTOR: 40 HP ADJUSTABLE SPEED
CUTTER O.D.: 9" (228mm)
FOUR BOXES KNIVES AND RUBBER SPACERS
KNIFE SIZES: .375" (19mm)
.500" (12.7mm)
.750" (19mm)

RECOILER:
TYPE: EXPANDING MANDREL W/GRIPPER SLOT
EXPANSION RANGE: 15-1/2"/16" (394/406mm)
DRUM LENGTH: 30" (762mm)
CAPACITY: 5,000 LBS. (2268 KG)
COIL PUSHOFF: PNEUMATIC
DRIVE MOTOR: 30 HP, 230/460 VOLT,
VARIABLE SPEED WITH TORQUE CONTROL

ELECTRICS:
MANUFACTURER: TOTAL CONTROL SCR DRIVES
OPERATING VOLTAGE: 480 VOLT

PREVIOUS USE:
MATERIAL: COPPER AND BRASS
THICKNESS RANGE: 0.187"-0.080" (4.75-2MM)
SUITABLE ALSO FOR STEEL, ALUMINUM AND OTHER ALLOYS

PAYOFF IS INCLUDED BUT REQUIRES A MINOR WELD REPAIR

PRINTS AND MANUALS INCLUDED
