FENN MODEL 3P HIGH SPEED PLAIN TYPE TURKSHEAD (12324)
Have one to sell?
ConditionUsed
1 available

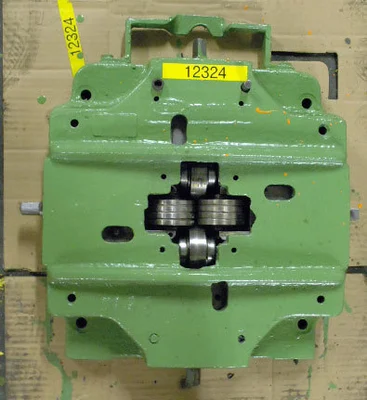

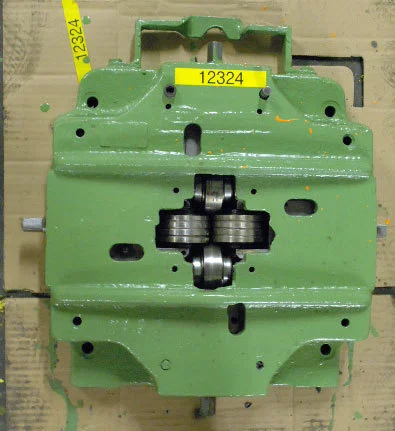

Used FENN Model 3P high-speed plain type Turkshead. As wire machinery, it's designed for shapes rather than a specific capacity. Features include an approximate max square of .080" (2.03mm), maximum roll opening of 1/2" X 1 1/8" (12.7mm X 28.6mm), and approx weight of 160 pounds (72.7kg). With actual approximate roll sizes in machine: vertical at 2 1/4" (57.2mm) DIA X 1 1/8" (28.6mm) wide and horizontal at 2" (50.8mm) DIA X 3/4" (19.1mm) wide, this machine is versatile and robust.
MACHINE #12324
SPECIFICATIONS
-MANUFACTURER: FENN MANUFACTURING CO.
-MODEL: 3P
-TYPE: HIGH SPEED PLAIN TYPE
-CAPACITY: FENN DOES NOT LIST A CAPACITY FOR THEIR "P"
TYPE TURKSHEADS BECAUSE THEY ARE GENERALLY USED
FOR SHAPES. CAPACITY LISTED BELOW IS APPROXIMATED
FOR MILD STEEL FOR REFERENCE PURPOSES ONLY.
-APPROXIMATE MAX SQUARE: .080" (2.03mm)
-MAXIMUM ROLL OPENING: 1/2" X 1 1/8" (12.7mm X 28.6mm)
-ROLL SIZE (CATALOG DIMENSIONS)
-VERTICAL: 2 1/2" (63.5mm) DIA X 1 1/8" (28.6mm) WIDE
-HORIZONTAL: 2 1/2" (63.5mm) DIA X 9/16" (14.3mm) WIDE
-ACTUAL APPROXIMATE ROLL SIZES IN MACHINE:
-VERTICAL: 2 1/4" (57.2mm) DIA X 1 1/8" (28.6mm) WIDE
-HORIZONTAL: 2" (50.8mm) DIA X 3/4" (19.1mm) WIDE
APPROX WEIGHT: 160 POUNDS (72.7 Kg)
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
