HOT ROLLING MILL PLANT FOR ROUND BAR (12311)

MACHINE# 12311

SPECIFICATIONS:

HOT ROLLING MILL PLANT FOR ROUND BAR:
Production capacity: 45 tons/hour

1. BILLET SIZE: 160mm x 160mm x 3m-4m Long (6.3" x 6.3" x 10-13 Ft.)
120mm x 120mm x 3m-4m Long (4.7" x 4.7" x 10-13 Ft.)

2. GRADE OF STEEL: CARBON STEEL, ALLOY STEEL,BEARING STEEL, SPRING STEEL

3. PRODUCT SIZE: DIA. 25mm - DIA. 123mm (1" - 4.8")

4. ROUGHING MILL: DIA. 457mm (18"), R-1 (9 PASS), R-2 (4 PASS)
FINISHING MILL: DIA. 304mm (12"), F-1-5 (5 PASS)

5. LINE SPEED: MAX. 3.2m/sec

6. SPECIFICATION

BILLET SHEAR:
MAKER: AMD (U.S.A.)
MADE YEAR: 1990
CAPACITY: 1700 TON (1SET)

CUTTING:
ROUND BAR DIA. 235mm (9 1/4")
SQUARE BAR DIA. 210mm (8 1/4")
CYLINDER DIA. 1000mm x 150mm (39.37" x 5.90") STROKE, 210kg/cm2

FURNACE:
45 TON/Hr. 4.6m x 21.9m (1 SET)
MAKER: DONGA (KOREA)
MADE YEAR: 1992
FURNACE INSIDE SIZE: 4.6m x 21.9m
TEMPERATURE: 1250 degree
FUEL: BUNKER C
BILLET INPUT TYPE: HYDRAULIC PUSHER (1 LINE)
BILLET OUTPUT TYPE: SLOP SKID PIPE
MATERIAL:
120mm x 120mm (4.7" x 4.7")
160mm x 160mm x 2.5m - 4m (13 Ft.)

ROUGHING MILL:
457mm (18") (R-1, R-2) (2 SET 6)
MAKER: ILJIN (KOREA)
MADE YEAR: 2000
3-HI ROLL
MOTOR: 1500 HP x 12 P x 3300 V x 590 RPM
REDUCER: 1/5.36

3-HI BEARING TYPE PINION STAND
3-HI FIBER TYPE ROLL STAND

ROLL SIZE: R-1 (DIA. 490mm x 1700mm) R-2 (DIA. 490mm x 1000mm)
ROLL SPEED: 2.59m/sec
KANT & APPROACH TABLE
DESCALER

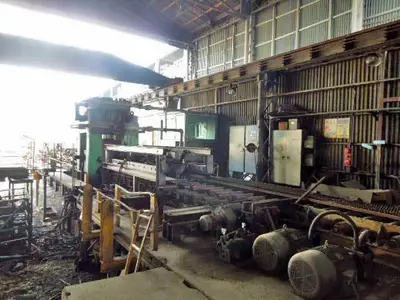

FINISHING MILL:
(305mm) 12" (F-1 - F-5) (5 SETS)
MAKER: WONIL (KOREA)
MADE YEAR: 1989
MOTOR: 2000 HP x 12 P x 3300 V x 590 RPM
REDUCER: 1/3.25
3-HI BEARING TYPE PINION STAND
3-HI FIBER & BEARING TYPE ROLL STAND
ROLL SIZE: F-1 - F-4 (DIA. 320mm) F-5 (DIA. 330mm)
ROLL SPEED: 3.2m/sec
Y TABLE

FLYING SHEAR: IFS-70 (1 SET)
MAKER: ILJIN (KOREA)
MADE YEAR: 1997
CUTTING: 70mm x 70mm (2.75" x 2.75")
LINE SPEED: 3.2m/sec
CUTTING SPEED: 3.7m/s

COLD SHEAR:
400 TON
MAKER: ILJIN (KOREA)
MADE YEAR: 1994
CUTTING CAPACITY DIA. 25mm - 75mm (0.98" x 2.95")
CLUTCH: AIR CLUTCH
BRAKE: AIR BRAKE

SAW:
MAKER: JUNHUNG (KOREA)
MADE YEAR: 2003
DIA. 900mm x 6tmm (2 SETS)
AIR TYPE
CUTTING CAPACITY DIA. 80mm - 120mm (3.14" x 4.72")
CUTTING SPEED: 110mm/s

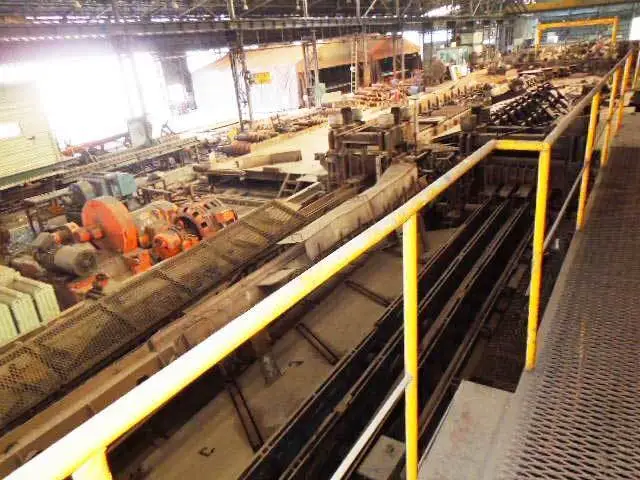

COOLING BED:
WALKING BEAM: (6.5m x 50m) (21.32 ft. x 164 ft.) (1 SET)
MAKER: WONIL (KOREA)
MADE YEAR: 1989

PRODUCT TABLE (1 SET)
MAKER: WONIL (KOREA)
MADE YEAR: 1989

7. SPARE PARTS:
AC MOTORS: 4 SETS
REDUCER: 2,000 HP x 1/3.26 (1 SET)
REDUCER: 1,500 HP x 1/5.3 (1 SET)

8. TRANSFORMERS:
22,900/3300V, 3000 KVA (1 SET)
22,900/3300V, 1200 KVA (1 SET)
3,300/220V, 500 KVA (3 SETS)
3,300/440V, 600 KVA (2 SETS)
3,300/440V, 300 KVA (1 SET)
3,300/220/110V, 100 KVA (1 SET)

TOTAL WEIGHT: ABOUT 1700 TON

Price includes dismantling FOB Port

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
