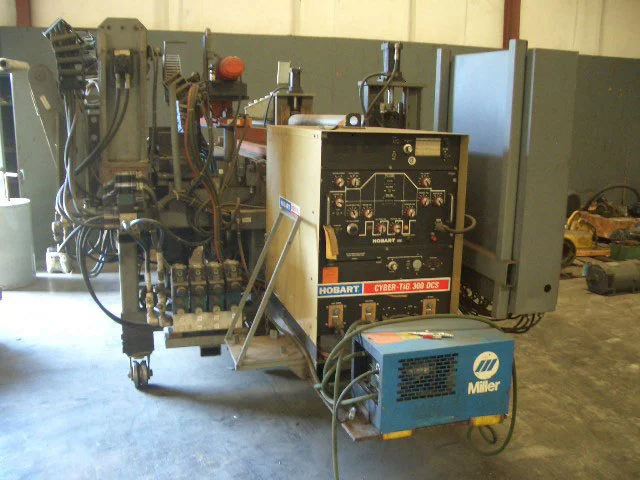

72" (1828mm) GUILD COIL END JOINER with HOBART 300 AMP WELDER (12264)
MACHINE# 12264
MANUFACTURER: GUILD INTERNATIONAL (U.S.A.)
MODEL No.: WS 150 72
JOB No.: CS 7881
PURPOSE: WELDING OF COILS OF METAL TOGETHER
MAX. COIL WIDTH: 72" (1828mm)
MIN. COIL WIDTH: 20" (508mm)
MAX. COIL THICKNESS: .375" (9.525mm)
MIN. COIL THICKNESS: .150" (3.8mm)
ELECTRIC: 460 VOLT, 3 PH., 60 HZ
ENTRY PINCH ROLLS: 6" (152mm) x 88" (2235mm) w/HYDRAULIC ADJUST
MANUAL ENTRY SIDE PLATES
HYDRAULIC STRIP CLAMPDOWN
TRAVELING TORCH WELDER
BOSCH HYDRAULICS
HUMP ROLL
PLANISHER
AUTO RESET
WELDER:
MANUFACTURER: HOBART CYBER-TIG 300DCS
MODEL No.: CT-300-DC-S
SERIAL No.: 87 WS 15716
LINE VOLTS: 230/460
LINE AMPS: 65/33
POWER: 300 AMPS, 32 VOLT, TYPE DC
COOLING: MILLER RADIATOR 1
ENTIRE UNIT IS MOUNTED ON WHEELS AND IS PORTABLE
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
