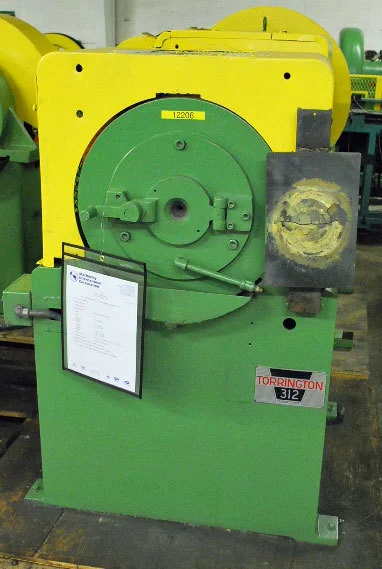

7/8" (22mm) TORRINGTON MODEL 312 ROTARY 2 DIE SWAGING MACHINE (12206)

MACHINE #12206

-SPECIFICATIONS

-MANUFACTURER: THE TORRINGTON COMPANY

-MODEL: 312

-TYPE: 2 DIE ROTARY

-CAPACITY
-SOLIDS: 3/8" (9.5mm)
-TUBING: 7/8" (22.2mm)

-DIE SIZE
-WIDTH: 1.187" (30.1mm)
-LENGTH: 2.500" (63.5mm)
-HEIGHT: 1.175" (29.8mm)

-FLOOR SPACE: 30 5/8" (777.9mm) W X 34 7/8" (885.8mm) LG

-WEIGHT (APPROX): 2500 LBS (1136kilos)

MACHINE IS EQUIPPED WITH A WATER COOLED HEAD.

MACHINES USES T-TYPE SIDE PLATES CAN ONLY USE SPECIAL SLOTTED HAMMERS
MACHINE USES NARROWER THAN STANDARD DIES AND HAMMERS
CAN EASILY BE CONVERTED TO STANDARD DIES AND HAMMERS

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
