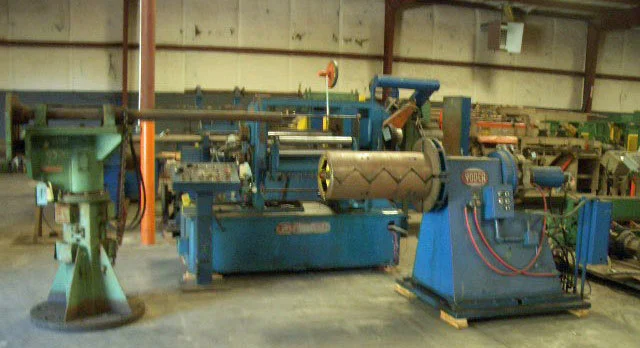

24" (610mm) x 5" (127mm) RUESCH SLITTING LINE [12065]

MACHINE# 12065

SPECIFICATIONS:

MANUFACTURER: H.J. RUESCH CO. (USA)
SERIAL No.: N2562 5902

MATERIALS: CRS, GALV., PRE-PAINT, TINPLATE
MAX. COIL WIDTH: 24"
MIN. COIL WIDTH: 4"
THICKNESS RANGE: .004" - .090"
MAX. SHEAR: 45,000 PSI
MAX. YIELD: 45,000 PSI
MAX. COIL WEIGHT: 10,000#
COIL I.D.:
- ENTRY: 15" - 20"
- EXIT: 12", 16", 20"
MAX. COIL O.D.: 60"
LINE DIRECTION: RIGHT TO LEFT
MODE OF OPERATION: DRIVEN AND PULL THROUGH

PAYOFF:
MANUFACTURER: YODER MACHINE CO. (USA)
SERIAL No.: Y7449-180
TYPE: EXPANDING MANDREL
TYPE EXPANSION: HYDRAULIC
MANDREL SIZE: 14" - 16" DIA.
33" FACE WIDTH
AIRFLEX BRAKE: BACK TENSION
SLIDING BASE
EQUIPPED W/SINGLE ARM TURNSTILE: RUESCH CO.

SLITTER HEAD:
MANUFACTURER: H.J. RUESCH CO. (USA)
ARBOR DIAMETER: 5" (127mm)
ARBOR FACE WIDTH: 28" (711mm)
DRIVE MOTOR: 20 HP, 1780 RPM, 460 VOLT,
27 AMPS, TORQUE 59 FT/LBS.
ELECTRIC CONTROLS: RELIANCE MODEL 3000/SE
AC INVERTER DRIVE
ENTRY ROLLER SIDE GUIDES
ENTRY PINCH ROLLS
ENTRY PRESSURE BOARD W/FELT COVERING
SCRAP STRIP GUIDE ON EXIT
EXIT PINCH ROLLS

SCRAP WINDER:
2 HP GEAR MOTOR

TAKE-UP:
TYPE: EXPANDING MANDREL
TYPE EXPANSION: HYDRAULIC
MANDREL SIZE: 15 1/2"/16" DIA. x 28" FACE WIDTH
COIL PUSHOFF: HYDRAULIC
OVERARM SEPARATOR
PAPER WINDER
DRIVE MOTOR: 50 HP, 1750-2100 RPM, 240 VOLT, 175 AMPS,
150/300 FIELD AMP, DC MOTOR INTO
GEARBOX WITH 10 TO 1 RATIO
SPARE MANDREL: 12" WIDTH

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
