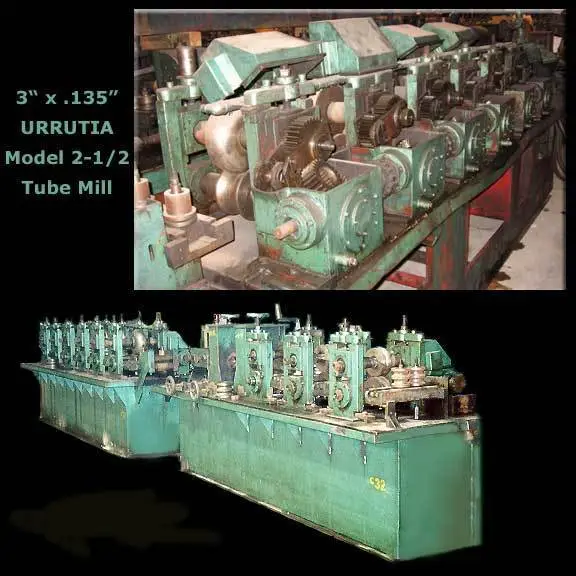

3" (76mm) x .135" (3.5mm) URRUTIA MODEL No. 2-1/2 TUBE MILL [11829] (NOTE: TUBE MILL ONLY - NO WELDER OR SHEAR)

MACHINE# 11829

SPECIFICATIONS:

manufacturer: URRUTIA
Model Number: 2-1/2
Year of Manufacture: 1970

NOTE: TUBE MILL ONLY, NO WELDER OR CUT-OFF.

Direction of Line: Right to Left

Entry Equipment:
2,000 Lb. (907 Kg) Single Uncoiler
Manual Expansion
I.D.: 16" - 20" (406mm - 508mm
O.D.: 60" (1524mm)
Tension Brake

Forming Mill:
Entry Strip Guide
Shaft Diameter: 2-1/2" (63.5mm)
Roll Space: 15" (380mm)
Vertical Adjustment: 5" - 8" (127mm - 203mm)
3 - Driven Forming Stands
3 - Driven Fin Stands
6 - Side Closers

Weld Section:
1 - 2-Roll Weld Pass
1 - Scarfing/Seam Ironer Pass

Sizing Mill:
3 - Driven Sizing Stands
3 - Side Closers
1 - Turks Head
1 - Additional Squaring Straightener

Drive Motor: SIEMENS 23 KW, 350/485/440 Volts,
78/54/60 Amps, 1500 RPM
No Controls

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
