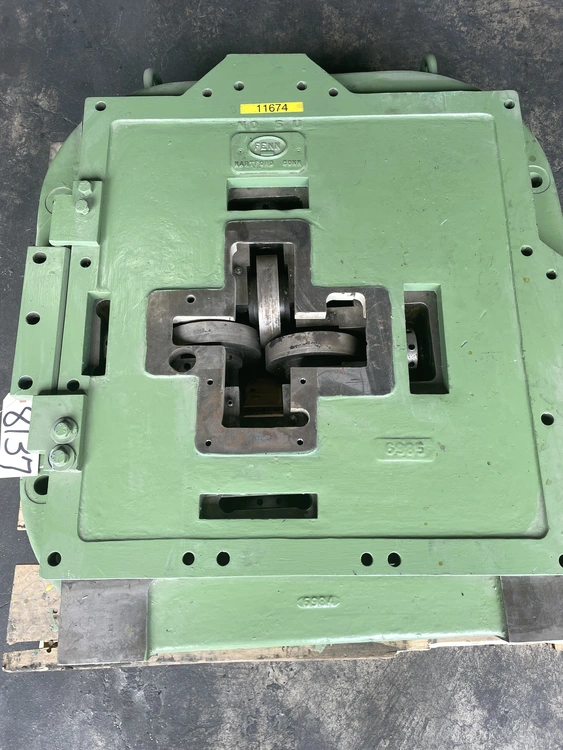

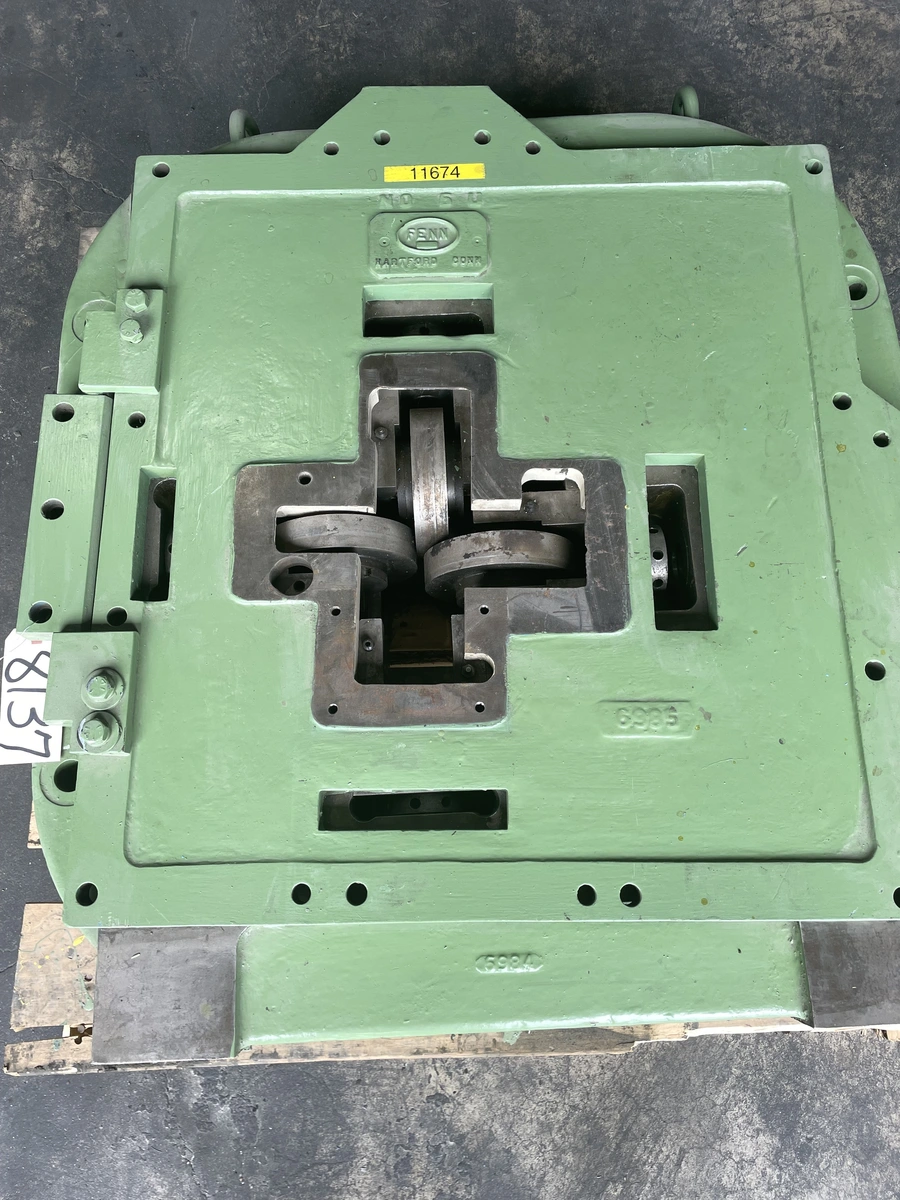

For sale is a used FENN Model 5U universal type Turkshead wire machinery. It features a maximum square capacity of .437" (11.1mm), a maximum rectangle of .219" x .437" (5.6mm x 11.1mm), and a maximum speed of 250 FPM (76mpm). This machine requires 16,000lbs (7,272Kg) pull for squares and has a roll size of 6-1/8" (155.6mm) in diameter and 1-1/4" (32mm) in width. Dimensions are 36" x 33" x 6 5/8" (914.4mm x 838.2mm x 168.3mm) and it weighs 2,100 lbs (955Kg). Please note, one roll is missing.
MACHINE 11674
SPECIFICATIONS
MANUFACTURER: FENN
MODEL: 5U
TYPE TURKS HEAD: UNIVERSAL TYPE STANDARD SPEED
CAPACITY
-MAXIMUM SQUARE: .437" (11.1mm)
-MAXIMUM RECTANGLE: .219" X .437" (5.6mm X 11.1mm)
PULL REQUIRED FOR SQUARES: 16,000LBS (7,272Kg)
MAXIMUM SPEED: 250 FPM (76mpm
ROLL SIZE: 6-1/8" (155.6mm) DIAMETER
1-1/4" (32mm) WIDTH
OVERALL DIMENSIONS: 36" X 33" X 6 5/8" (914.4mm X 838.2mm X 168.3mm)
WEIGHT: 2,100 LBS (955Kg)
**Please note missing one roll***
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
