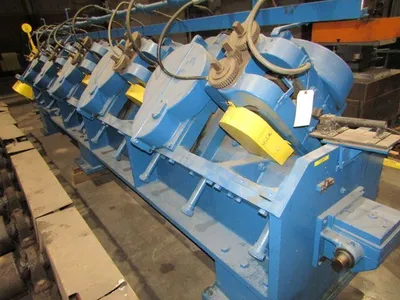

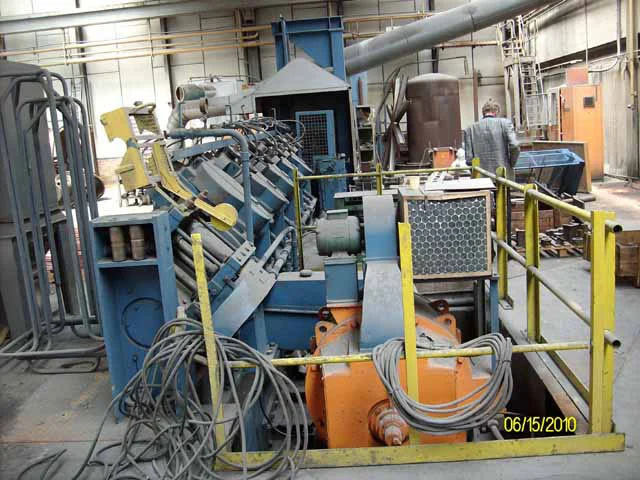

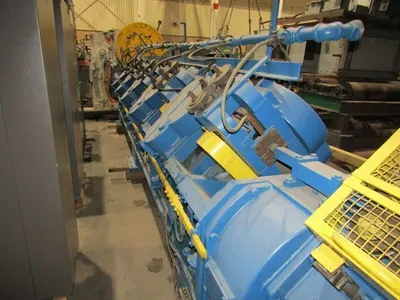

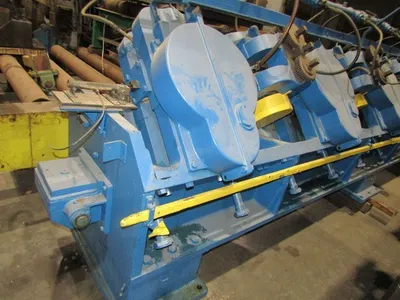

For sale: a used 7" (177mm) x 2" (50mm) Waterbury Farrel 10 Stand Rod Mill with Coiler (Model 11357). It features a maximum start size of .781" (19.8mm) diameter and a minimum finish size of .300" (7.62mm) square. The machine's entry guide has 2 roll vertical non-driving feature and its vertical coiler, driven from main drive, can handle up to 4,000 lbs. (1815 KG). It's driven by a 150 H.P., 245 Amps, 500 Volts, 600/1200 RPM General Electric England motor. It's specifically designed for bar & rod rolling mills.
MACHINE #10849
SPECIFICATIONS
-MANUFACTURER: WATERBURY FARREL CORP.
-TYPE: 10 STAND CROSS HEAD WITH INVERTED BLOCK
-CAPACITY
-MAXIMUM START SIZE: .781" (19.8mm) DIA.
-MINIMUM FINISH SIZE: .300" (7.62mm) MODIFIED SQUARE
-ROLL SIZE
-DIAMETER: 7" (177.8mm)
-ROLL FACE: 2" (50.8mm)
-NUMBER OF STANDS: 10

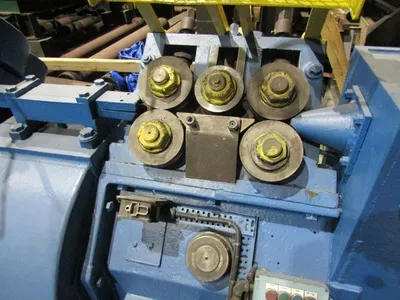

-PRE-STRAIGHTENING ROLLS
-TAKE-UP BLOCK
-TYPE: VERTICAL COILER DRIVEN FROM MAIN DRIVE
-DIAMETER: 20" (208mm)
-FACE: 23" (584.2mm)
-CAPACITY: 4,000 LBS. (1815 KG)
-DRIVE MOTOR: 150 H.P., 245 AMPS, 500 VOLTS, 600/1200 RPM
GENERAL ELECTRIC ENGLAND

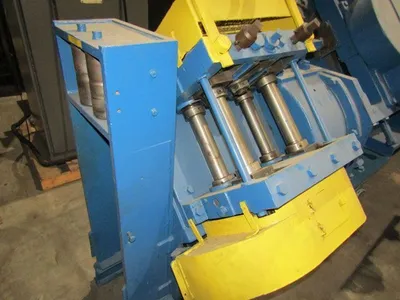

-ENTRY GUIDE: 2 ROLL VERTICAL NON-DRIVEN
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
