2" (50mm) MITCHELL 12,500 LB. (5670 KG) 2 DIE HYDRAULIC PUSH POINTER (11228)
Have one to sell?
ConditionUsed
1 available

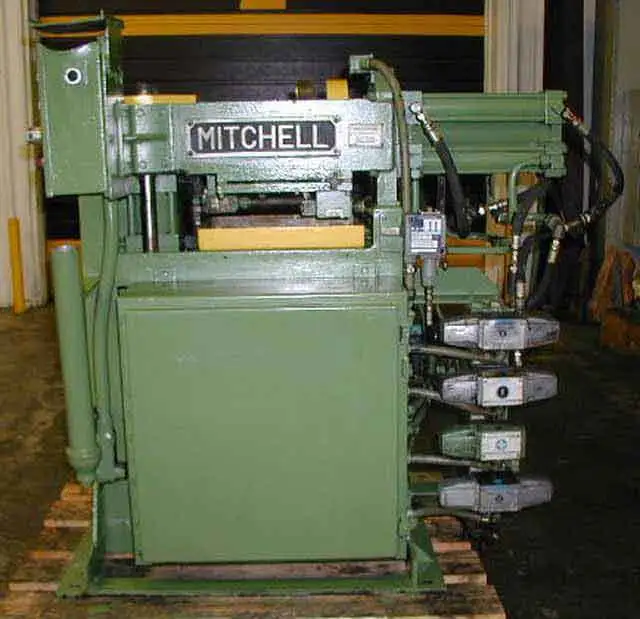

For sale is a used 1982 Mitchell Push Pointer. As a 2 die hydraulic, it can handle tubes with 2" to 1/2" diameter, and a maximum capacity of 14,100 LB at 2250 PSI. Its speed capabilities are robust: 397 IPM advance at 2000 PSI and 550 IPM retract at 1000 PSI. The set includes an operator push station console and foot pedal switch, but note that the hydraulic unit must be supplied by the purchaser. All specs should be verified by the buyer.
MACHINE #11228
SPECIFICATIONS:
MANUFACTURER: GEORGE A MITCHELL CO
TYPE: IN-LINE HYDRAULIC PUSH POINTER
YEAR OF MANUFACTURE: 1982
SERIAL No.: 378
MAXIMUM TUBE O.D.: 2" (50mm)
MINIMUM TUBE O.D.: 1/2" (12.7mm)
RATED CAPACITY: 12,500 LB. @ 1989 PSI
MAXIMUM CAPACITY: 14,100 LB. @ 2250 PSI
No. OF DIES: 2
WITH OPERATOR PUSH STATION CONSOLE AND FOOT PEDAL SWITCH
POINTING SPEEDS:
ADVANCE: 397 IPM @ 2000 PSI
RETRACT: 550 IPM @ 1000 PSI
DIE CASE SIZE: 2"- 4" O.D. x 1" THICK
REF. DWG.
SECTIONAL ARRANGEMENT: 5749
GENERAL ARRANGEMENT: 5783
HYDRAULIC UNIT TO BE SUPPLIED BY PURCHASER.
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
