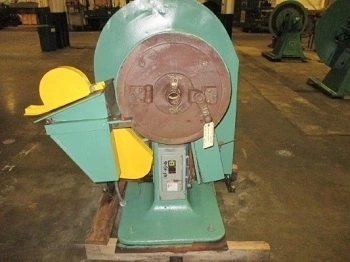

1 3/4" (44mm) TORRINGTON MODEL #6 MODIFIED ROTARY SWAGING MACHINE (11065)
Have one to sell?
ConditionUsed
1 available
For sale: A used 1 3/4" (44mm) Torrington Model #6 Modified Rotary Swaging machine (Machine# 11065). This machine's die dimensions differ from standard Model #6. Features include a capacity of 1 3/4" (44.5mm), a 6" (152.4mm) taper, and a die size with 2" width, 1 5/16” height and 6” length. Equipped with a 7 1/2 HP (5.6Kw) motor and a trim saw with a 1HP motor. Requires 45" L-R x 45" F-B x 53" high floor space.
MACHINE# 11065
SPECIFICATIONS:
MANUFACTURER: TORRINGTON
MODEL: 6 MODIFIED- THE DIE DIMENSIONS FOR THIS MACHINE
DO NOT MATCH THOSE OF A MODEL #6 ALTHOUGH OTHER
INDICATORS SHOW THE MACHINE TO BE A MODEL #6. THE
CAPACITY LISTED BELOW IS BASED ON THE EXISTING
DIE SIZE AND NOT ON CATALOG DIMESNIONS FOR A
MODEL #6.
CAPACITY: 1 3/4" (44.5mm)
LONGEST TAPER POSSIBLE: 6" (152.4mm)
DIE SIZE:
-WIDTH: 2" (50.8mm)
-HEIGHT: 1 5/16" (33.3mm)
-LENGTH: 6" (152.4mm)
MOTOR: 7 1/2 HP (5.6Kw) 1745 RPM AC MOTOR
208/230/460 VOLT 3 PHASE 60 HERTZ
NOTE: MACHINE IS EQUIPPED WITH A TRIM SAW. THE TRIM SAW MOTOR IS A 1 HP 1730
RPM AC MOTOR THAT IS 440 VOLTS 3 PHASE 60 HERTZ.
FLOOR SPACE: 45" L-R X 45" F-B X 53" HIGH
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
