2,000 LB. (907 KG) PROGRESSIVE MODEL 620-SM-RH TRAVERSING TAKE-UP (10579)
Have one to sell?
ConditionUsed
1 available

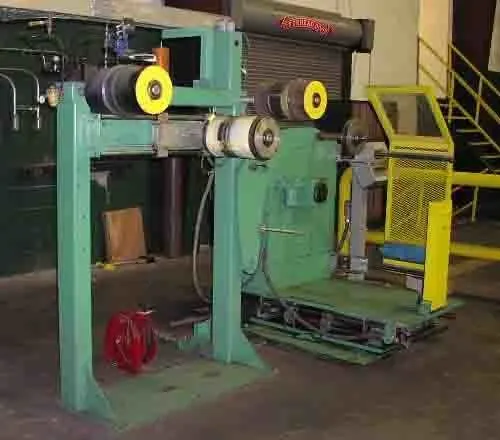

For sale: used 2,000 LB. (907 KG) PROGRESSIVE MODEL 620-SM-RH TRAVERSING TAKE-UP. This model, crafted by PROGRESSIVE MACHINE CO. INC of Paterson, New Jersey, is a reliable piece of equipment for those requiring efficient RECOILING services.
The device boasts a maximum coil weight of 2,000 LB and adjustable frequency control. It operates at a line speed of 150-400 FPM and with a normal tension of 15 LB. Its drive motor is 3 HP, 1800 RPM, 3 PH, 60 HZ powered, and works on pneumatics.
Purchase includes the entry side tension stand, made by the same manufacturer. The condition of this model is used and buyer will be responsible for verification of all specifications. Sold as is and subject to prior sale.
MACHINE # 10579
MANUFACTURER: PROGRESSIVE MACHINE CO. INC.
PATERSON, NEW JERSEY
MODEL: 620-SM-RH
SERIAL NUMBER: 17060620
SPOOLER MACHINE No.: SO# 37370
MAXIMUM COIL WEIGHT: 2,000 LB.
SPOOL SIZE:
O.D.: 30" (762mm)
I.D.: 15" (381mm)
WIDTH: 10 1/2" (267mm)
HOLE DIAMETER: 5" (127mm)
STRIP THICKNESS:
MINIMUM: 0.005" (0.127mm)
MAXIMUM: 0.060" (1.53mm)
STRIP WIDTH:
MINIMUM: 0.300" (7.62mm)
MAXIMUM: 2" (50mm)
LINE SPEED: 150-400 FPM (45-122m/MIN.)
NORMAL TENSION: 15 LB. (6.8 KG)
TYPE OF TENSION: PNEUMATIC
DRIVE MOTOR: 3 HP, 1800 RPM, 3 PH, 60 HZ
ADJUSTABLE FREQUENCY CONTROL
DIGITAL CONTROL SET UP
ENTRY SIDE TENSION STAND
MANUFACTURER: PROGRESSIVE MACHINE CO. INC.
MODEL No.: 604 LH
SERIAL No.: 15420604
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
