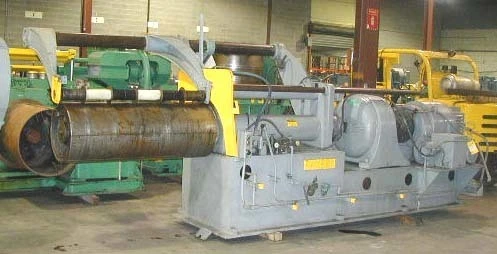

20,000 LB. (9072 KG) x 48" (1219mm) PAXSON RECOILER W/OVERARM SEPARATOR (6583)
Have one to sell?
ConditionUsed
1 available
Discover the power of PAXSON with this used 20,000 LB. (9072 KG) x 48" (1219mm) recoiler offering a hydraulic expanding mandrel and efficient overarm separator. From 1963, this Paxson model boasts a maximum coil weight capacity of 20,000 lbs and is equipped with a hydraulic coil stripper. With a right to left travel direction, it operates on a powerful 60 HP motor and features self-contained hydraulics, providing reliable performance for any task at hand. Don't miss out on this meticulously maintained piece of machinery!
MACHINE #6583
MANUFACTURER: PAXSON MACHINE CO.
CAPACITY: 20,000 LBS. MAX. COIL WEIGHT
TYPE: EXPANDING MANDREL
TYPE OF EXPANSION: HYDRAULIC
MANDREL SIZE:
MANDREL O.D.: 19-1/2" - 20-1/2"
WIDTH: 52"
MAX. COIL O.D.: 72"
MAX. COIL WIDTH: 48"
TYPE OF COIL STRIPPER: HYDRAULIC
EQUIPPED WITH OVERARM SEPARATOR
SHAFT DIAMETER: 2 1/2"
SPACER OD: 3 1/2"
OVERARM SEPERATOR KNIFE OD: 6"
DIRECTION OF TRAVEL: RIGHT TO LEFT
DRIVE MOTOR: 60 HP, 1150/2000 RPM, 206 AMPS,
240 VOLTS, D.C.
GEAR REDUCER: RATED 75 HP, INPUT RPM 1730, OUTPUT
RPM 56, RATIO 31.4 TO 1
SELF-CONTAINED HYDRAULICS:
MANUFACTURER: PAXSON MACHINE CO.
SERIAL NO.: 649
DRIVE MOTOR: 3 HP, 230/460 VOLTS, 3 PH., 60 HZ
OVERALL FLOOR SPACE: 4 FT. x 17 FT.
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
