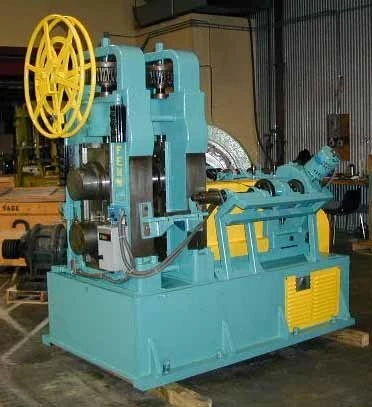

1-7/8" (47mm) x 8" (203mm) x 8" (203mm) FENN 4 HIGH ROLLING MILL (6433)
MACHINE # 6433
MANUFACTURER: FENN MANUFACTURING CO
TYPE MILL: 4 HIGH ROLLING MILL NON REVERSING ONE WAY
WORK ROLL SIZE: 1-7/8" (47.6mm) DIA X 8" (203.2mm) FACE WIDTH
WORK ROLL DRIVEN MILL
BACK UP ROLL SIZE: 8" (203.2mm) DIA X 8" (203.2mm) FACE WIDTH
MILL STAND CROSS SECTION: 6-5/8" (168.3mm) X 8" (203.2mm)
MILL STAND WINDOW: 11-1/2" (292.1mm) X 30" (762mm) HIGH
SPEED: UP TO APPROXIMATELY 245 FPM (74.6mpm)
SCREWDOWNS: MANUAL- DUAL HANDWHEEL TYPE
SPINDLES AND COUPLINGS: SPLINE
MILL DRIVE MOTOR: 25 HP (18.6kw), 1750 RPM, 220/440 VOLTS, 3 PH,
60 HZ
EDDY CURRENT TYPE DRIVE MOTOR
RECOILER: 1-1/2" (38.1mm) DIA SHAFT (SPOOL SHAFT 3"
(76.2mm) OD X 4-7/8" (123.8mm) WIDE)
1 HP (.74kw) BOSTON GEAR, 1725 RPM, 3 PH, 60 HZ,
230/460 VOLTS, 3.4/1.7 AMPS
DRIVE: DYNAMATIC CORPORATION EDDY CURRENT TYPE DRIVE
PRO #9177
230/460 VOLT 3 PHASE 60 HZ INPUT VOLTAGE
INPUT VOLTAGE: 230/460 VOLT 3 PHASE 60 HZ
BUYER SHOULD BUDGET FOR NEW ELECTRICAL CONTROLS
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
