1 3/4" (44mm) - 1/8" (3mm) BERTOLETTE MODEL 315 TUBE FLYING CUTOFF LINE (6152)
Have one to sell?
ConditionUsed
1 available

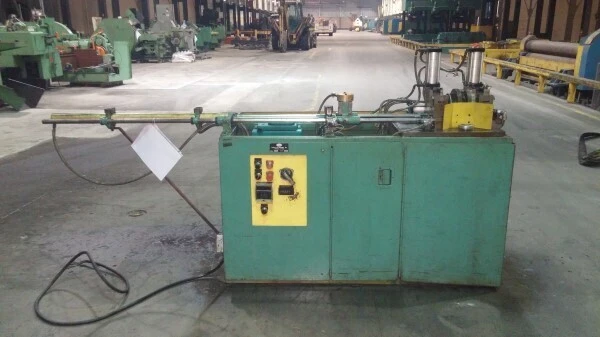

Used Bertolette Model 315 Tube Flying Cutoff Line. Noted for its tube capacity of 1/8"-1 3/4" O.D. x .065" wall for various materials. Plus, gain added capabilities with burr-free cuts for materials like copper, aluminum, and cold-rolled steel up to 1" O.D., and stainless & Incoloy up to 1/2" O.D. thanks to the Rotary Cut & Pull attachment. Equipped with a 1HP 1750 RPM motor and control, it operates from left to right. Compact in size with dimensions of 8ft. 6" x 1ft. 8" x 4ft. 4".
MACHINE # 6152
SPECIFICATIONS:
SERIAL NUMBER 315331
TUBE CAPACITY: 1/8"- 1 3/4" O.D. x .065" WALL (ANY
MATERIAL) WITHOUT USING ROTARY CUT
AND PULL ATTACHMENT
CAPACITY USING ROTARY CUT AND PULL ATTACHMENT FOR BURR-FREE CUTS
COPPER, ALUMINUM, COLD
ROLLED STEEL 1/8" - 1" O.D.
STAINLESS AND INCALLOY 1/8" - 1/2" O.D.
MAX FEED LENGTH PER STROKE 36"
TYPE: ROTARY CUT & PULL
DIRECTION OF TRAVEL LEFT TO RIGHT
OVERALL DIMENSIONS 8 FT. 6" LR X 1 FT. 8" FB X 4 FT.4" HIGH
DRIVE MOTOR 1 HP, 208-220/440 VOLT, 3 PH., 60 HZ.,
1750 RPM WITH CONTROLS
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**** ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY THE PURCHASER ****
