20" (508mm) FASTENER ENGINEERING MODEL DA-03-2020 IN-LINE WIRE DRAWER (4989)
Have one to sell?
ConditionUsed
1 available

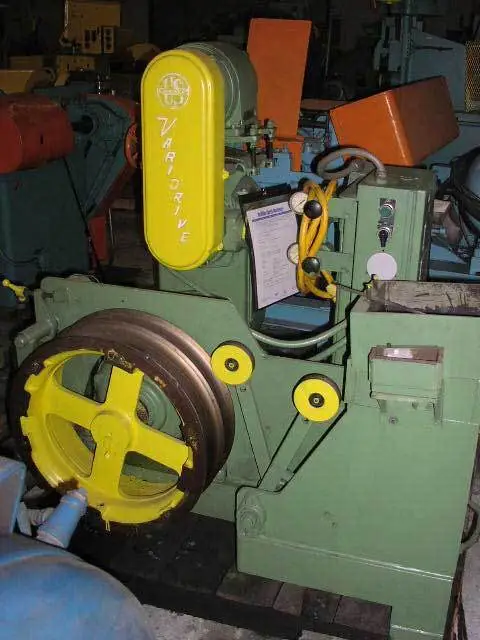

20" FASTENER ENGINEERING Model DA-03-2020 In-Line Wire Drawer, a powerful addition to your workshop. With a double capstan and manually operated pressure rolls and controls for forward/reverse/jog, this machinery promises a high tensile strength. It offers a speed range of 4-35 FPM and a 3HP US Motors Variant drive, adding to its efficiency. Notably, it is capable of drawing two wires simultaneously. Maximize productivity and precision with this robust wire machinery.
Machine # 4989
MANUFACTURER: FASTENER ENGINEERING CO
MODEL: DA-03-2020
CAPSTAN DIAMETER: 20"
-DOUBLE CAPSTAN
REDUCTION CAPABILITY
-60,000 PSI TENSILE .024 SQ/IN MAXIMUM
-80,000 PSI TENSILE .021 SQ/IN MAXIMUM
-100,000 PSI TENSILE .017 SQ/IN MAXIMUM
SPEED
-MINIMUM 4 FPM
-MAXIMUM 35 FPM
DRIVE: US MOTORS VARI-DRIVE
-MOTOR: 3 HP (US MOTORS)
1000/2000 RPM
FRAME 215
-VOLTAGE 208/220/440 VOLTS 3 PHASE 60 HERTZ
-VARI-DRIVE TYPE VEVFI GM (US MOTORS)
GEAR RATIO 209
FRAME 23-41
EQUIPPED WITH MANUALLY OPERATED PRESSURE ROLLS AND CONTROLS FOR
FORWARD/REVERSE/JOG.
NOTE: MACHINE IS CAPABLE OF DRAWING TWO WIRES AT ONE TIME
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
*******ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER*******
