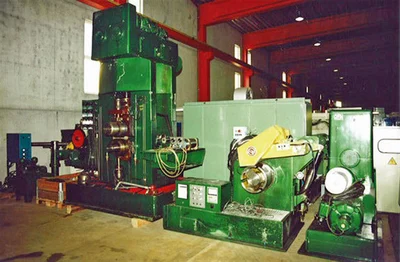

12" (305mm) x 14" (350mm) CARL WEZEL PRECISION FINISHING MILL (4228)

MACHINE #4228

MANUFACTURER: CARL WEZEL K.G. (KRUPP)
MODEL: BW 300/350
ROLL SIZE: 12" DIA. x 14" FACE
(300mm Dia. x 350mm Face)
SERIAL NUMBER: 740523
YEAR OF MANUFACTURE: 1975
PURPOSE: PRECISION FINISH ROLLING OF NARROW WIDTH THIN
GAUGE METAL USING AUTOMATIC GAUGE CONTROL WITH
VOLLMER THICKNESS GAUGES
CAPACITY:
MAX. WIDTH OF STRIP: 10" (254mm)
WIDTH PREVIOUSLY ROLLED: 4" (100mm) NORMAL
MIN. WIDTH OF STRIP: .787" (20mm)
WIDTH TOLERANCE: +/- 0.020" (+/- 0.5mm)
MAX. THICKNESS OF STRIP: 0.157" (4mm)
MIN. THICKNESS OF STRIP: 0.01" (0.25mm)
THICKNESS TOLERANCE: +/- 0.0006" (+/- 0.015mm)

*NOTE: THESE ARE MANUFACTURER'S NEW SPECIFICATIONS AND ARE NOT GUARANTEED
BY SELLER.

MAX. COIL WEIGHT: 4400 LBS. (2000 KG)
MILL DRIVE: 58 KW, 260/2600 RPM, 58/420 VOLTS, 58 KVA
SCREWDOWNS: ELECTROMECHANICAL
SCREWDOWN SPEED: 0.078-1.0 IPM (2-25mm/Min.)
PRE-STRESSED HOUSINGS
MILL EQUIPPED WITH LOAD CELLS
ROLLER BEARING ON CHOCKS
WATER-COOLED ROLLS

THICKNESS GAUGE:
MANUFACTURER: VOLLMER
MODEL: TYPE VBM 1063 E
TYPE GAUGE READOUT: VOLLMER VMF 3
STRIP CHART RECORDER

MILL SPEED (INFINITELY VARIABLE): 0-200 FPM (0-60m/Min.)

PAYOFF:
TYPE: EXPANDING MANDREL
MANDREL SIZE: 12"/14" I.D. x 10" FACE (300/350mm x 250mm)
DRIVE: 9 / 1 KW
HYDRAULIC COIL HOLDOWN
HYDRAULIC ENTRY LEVELLER
EDGE GUIDES

RECOILER:
TYPE: EXPANDING MANDREL
DRIVE: 1.2/12 KW, 100/1060 RPM, 40/200 V, 7.6 AMPS
HYDRAULIC COIL HOLDDOWN

-MILL HAS SCR THYRISTOR DRIVE SYSTEM

-MILL EQUIPPED W/SELF-CONTAINED HYDRAULIC PACKAGE, CONTROLS AND STORAGE TANK

-MILL EQUIPPED W/AUTOMATIC GAUGE CONTROL SYSTEM USING VOLLMER THICKNESS GAUGES

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
